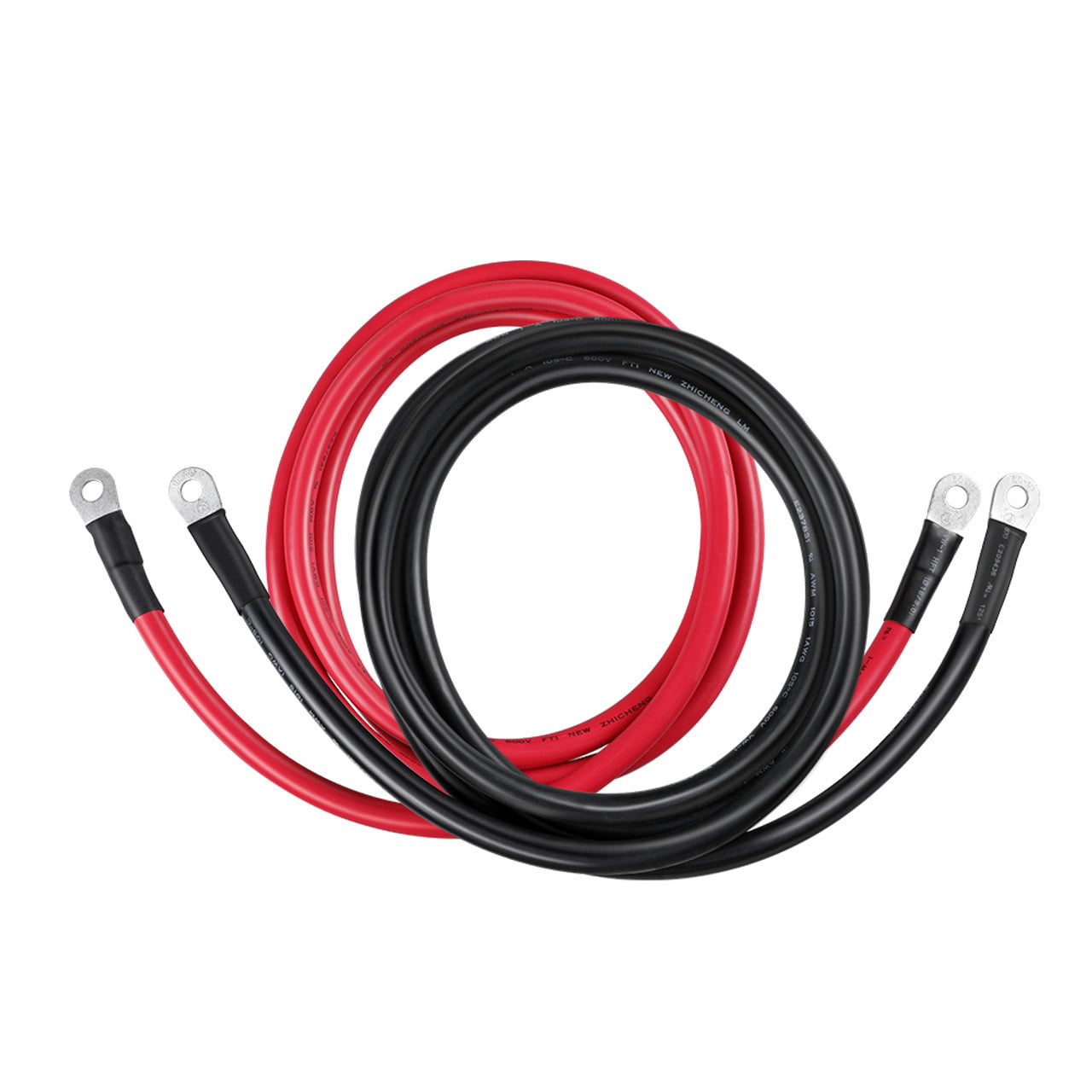

Battery Inverter Cables for 3/8 in Lugs
$42.99
Description
Package IncludesInverter Cable for Connecting Inverter to Battery Pair
Specification
| Renogy Inverter Cables (A pair) | |
|---|---|
| Length: 5Ft | Size: 4AWG |
| Operating Voltage: 600/1000V | Conductor: Tinned Copper |
| Maximum Operating Temperature: 221°F Dry, 167°F Wet | Terminal: 3/8In Rings Terminals at Both Ends |
| Stranding: Class K 30AWG Bare Copper Stranded | |
| Renogy Inverter Cables (A pair) | |
| Length: 8Ft | Size: 1AWG |
| Operating Voltage: 600/1000V | Conductor: Tinned Copper |
| Maximum Operating Temperature: 221°F Dry, 167°F Wet | Terminal: 3/8In Rings Terminals at Both Ends |
| Stranding: Class K 30AWG Bare Copper Stranded | |
| Renogy 5Ft 4/0 AWG Inverter Cables (A pair) | |
| Length: 5Ft | AWG: 4/0AWG |
| Operating Voltage: 600/1000V | Stranding: Stranded Copper |
| Maximum Operating Temperature: 220°F Dry, 165°F Wet | Ring terminal: 3/8” metal lugs |
| Maximum Operating Amp(Amperage): 230A |
Warranty Information
| Accessories | 1-year material warranty |
Specification
Additional information
| Brand | Renogy |
|---|
