Description

About CHINS Battery

CHINS has its own factory, are mainly engaged in LiFePO4 and lithium-ion battery business,
which is very suitable for RV, Caravan, Solar, Marine, Home Storage and Off-Grid.
CHINS’s team keep strive to maintain a green life on the way of continuing to explore the
new energry, in order to provide a better low-carbon life for people.
CHINS is equipped with the most advanced R&D team and equipment, and our products
have obtained CE, ROHS, WEEE and PSE quality system certification. We also set up our own
warehouse in California, USA.

Specifications

Rated Capacity (0.2C): 100Ah / 5120Wh
Cycle life: 2000+ cycles at 80% discharge depth
Rated voltage: 51.2V
Charge voltage: 56.8V – 57.6V
Depth of Discharge (DoD): 100%
Standard charge current: 30A
Charging time: Approximately 5 hours
Max continuous charge current: 50A
Max continuous discharge current: 100A
Peak discharge current: 300A (Duration: less than 3 seconds)
Operating temperatures: Charge 0°C~50°C(32°F~122°F),
Discharge -20°C~60°C(-4°F~140°F), Storage -10°C~50°C(14°F~122°F)
Impedance: ≤ 6mΩ
Brand: CHINS

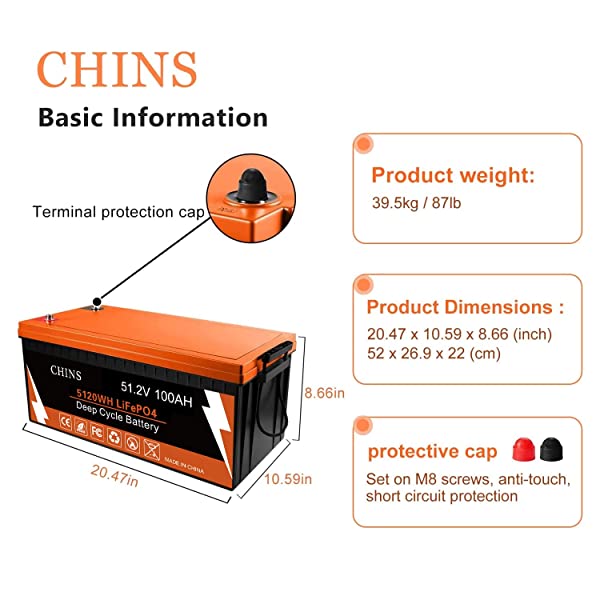

Size: 20.47 x 10.59 x 8.66 inches
Color: Black, Orange.
