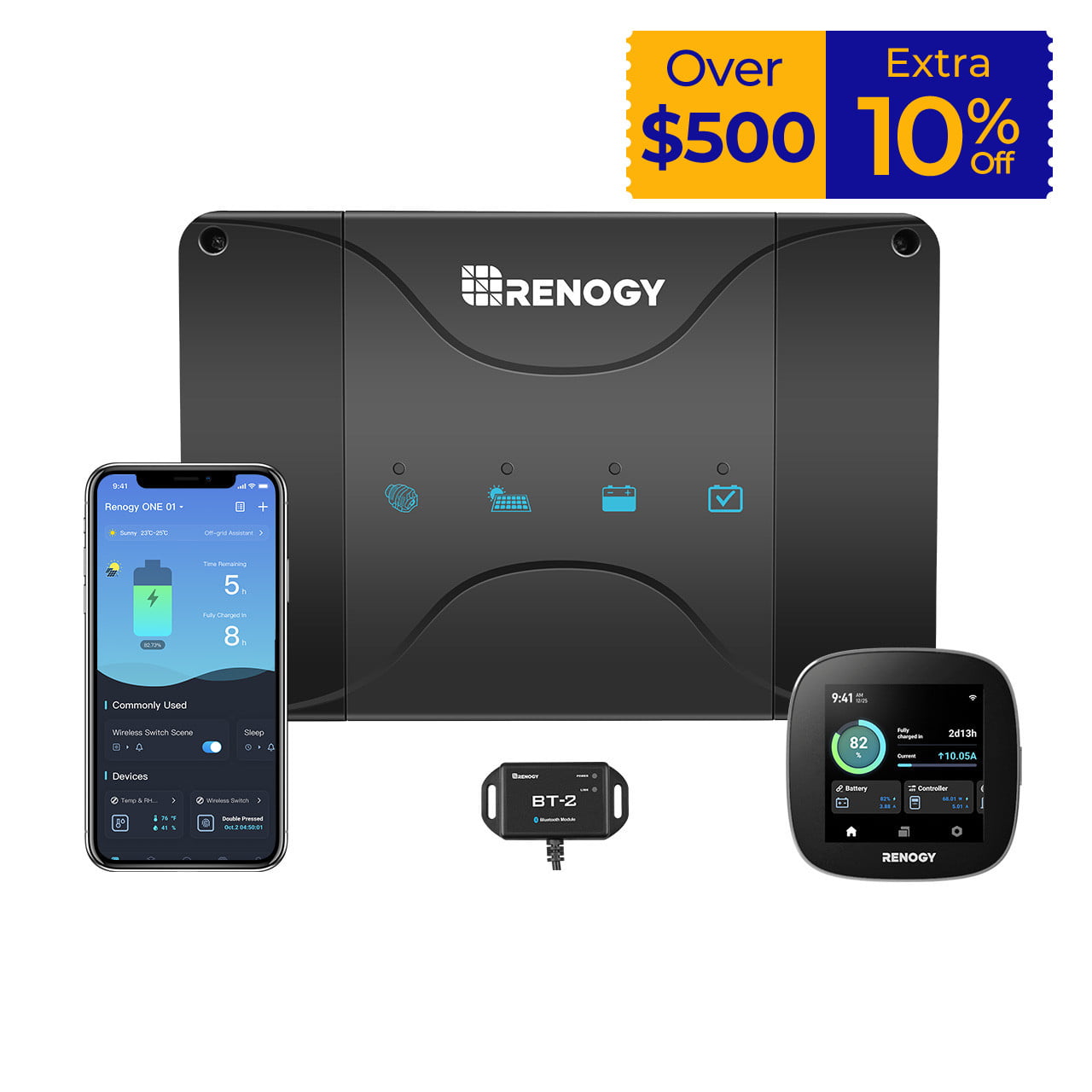

DCC50S 12V 50A DC-DC On-Board Battery Charger with MPPT with Renogy ONE Core
$224.63
•
Renogy’s MPPT controller maximizes solar power (up to 99% efficiency), even for dead batteries.
•
3-phase charging guards against issues like over-voltage, temperature, and polarity. Includes temp compensation.
•
Works with traditional and smart alternators, reviving service batteries from starters.
•
Use the RJ45 port for real-time control via Bluetooth and the Renogy app.
•
Heat sink ensures quiet, efficient charging without noisy fans.
Description
Package IncludeBattery Charger xBattery Temperature Sensor xIGN Signal Wire xRing Terminals x
System Voltage:
12VDC
Battery voltage Range:
9-16VDC
Maximum Charging Current:
50A
Battery Types:
SLD, GEL, FLD, LI,USER
Service Battery Charging Mode:
MPPT
Charging Efficiency:
Up to 97%
Max. Solar Input Voltage:
25V
Max. Solar Input Power:
660W @ 50A
Alternator Input Voltage:
Traditional Alternator: 13.2-16VDC ; Smart Alternator (Euro 6): 12-16VDC
Max. Alternator Input Power:
660W @ 50A
Self-consumption:
60mA
opc:
Ground Type:
Negative
Terminal Size:
M8*1.25 – 10mm
Temperature Compensation:
-3mV/C/2V
Operating Temperature Range:
-31°F – 149°F
Storage Temperature Range:
-40°F – 176°F
Operating / Storage Humidity:
0%-95%, No Condensation
Dimensions:
9.6*5.7*3.0in
Weight:
3.13Ibs
Communication Protocol:
RS485
opc:
CE:
YES
ROHS:
YES
FCC Part 15 class B:
YES
opc:
Material and workmanship warranty:
2 Year
opc:
