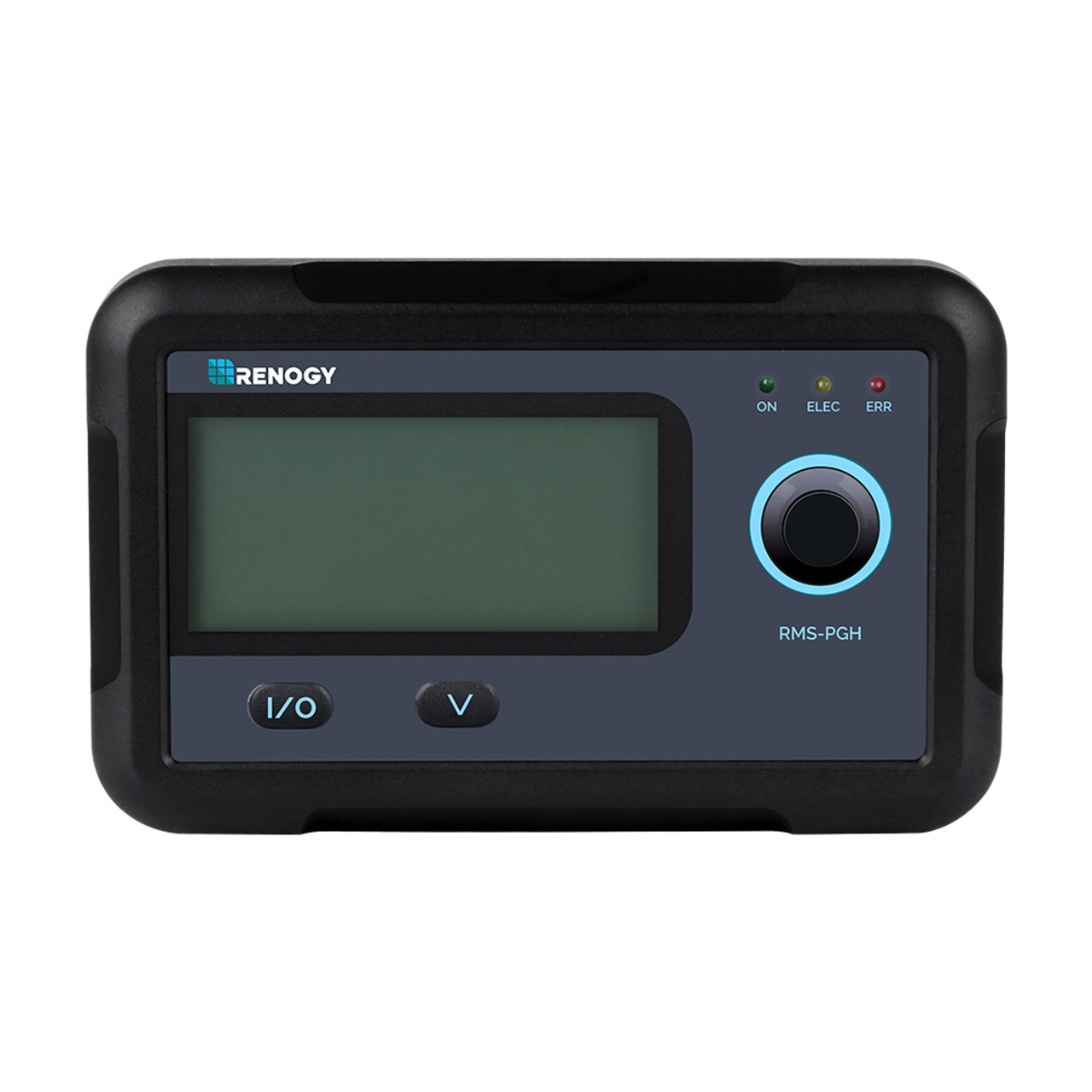

Monitoring Screen for PGH Inverter Series
$39.99
Description
Package IncludesMonitoring Screen for PGH Inverter Series x
Specification
| Electrical Specifications | Mechanical Specifications |
|---|---|
| Supply Voltage: 5VDC | Communication Port: RJ45 (RS485 Protocol) & RJ12 |
| Supply Current: 30mA | Display: Backlit LCD |
| Power Consumption: <1W | User Interface: 2 Front Menu Buttons, 1 On/Off Push Button |
| Operating Temperature Range: -4°F~113°F / -20°C~45°C | Mounting System: Wall Mount |
| Voltage Accuracy: ±0.1V | Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm |
| Current Accuracy: ±0.1A | Weight: 0.14 lbs / 62 g |
| Wire Length: 2 x 16.4ft / 5m | |
| Mounting Screw: M2.9x13mm |
Warranty Information
| Accessories | 1-year material warranty |
