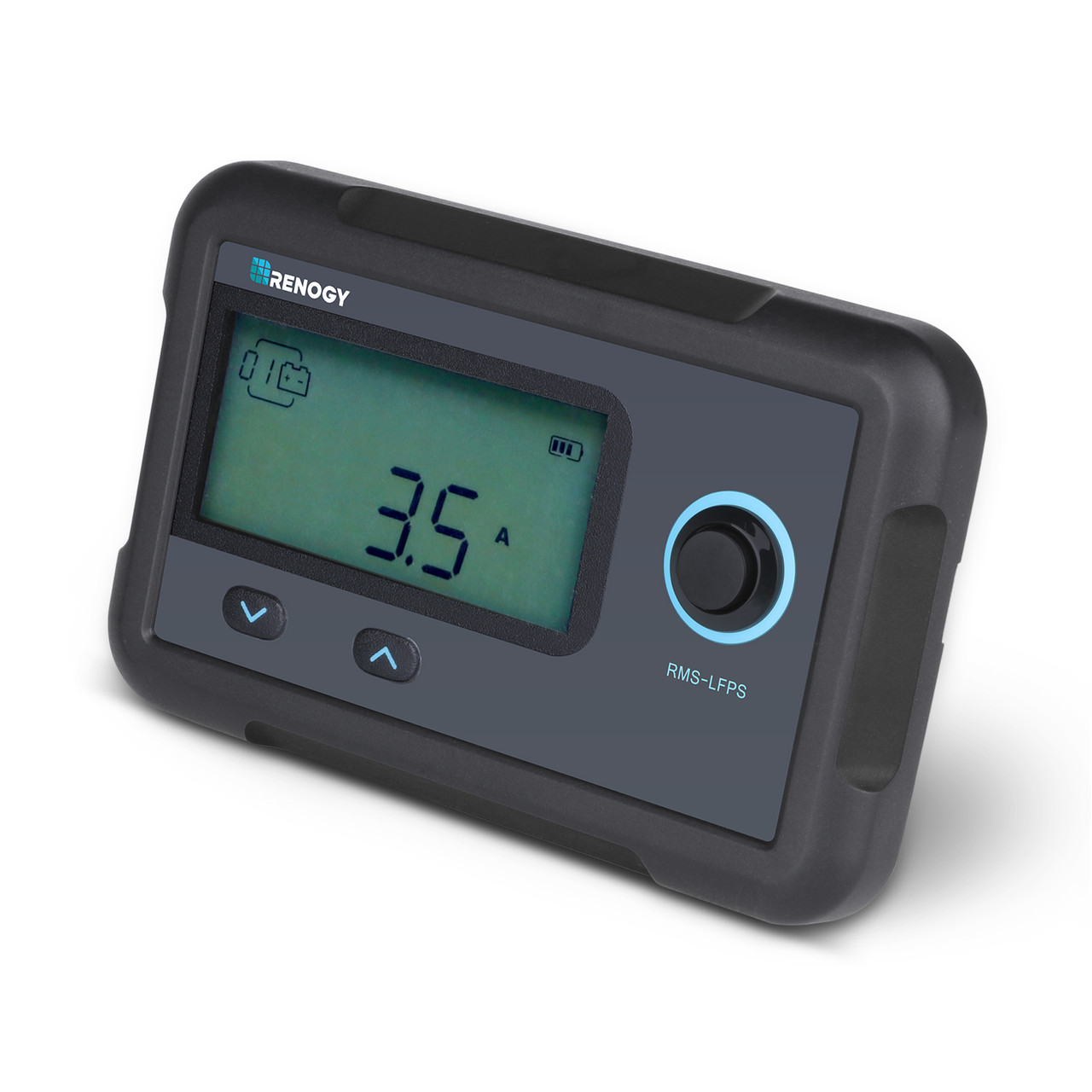

Monitoring Screen for Smart Lithium Battery Series
$49.99
【Accurate Monitoring】 Obtains battery bank operation information directly from the battery management system (BMS) for precise tracking and prediction. Takes all the guesswork out of the battery bank.
【Plug and Play】 Simply connect the monitoring screen to the battery bank using the included RJ45 communication cable for real-time monitoring, without a shunt needed.
【Comprehensive Protection】 Displays straightforward 9 warning codes for quick recognition of potentially abnormal conditions and improper operation, helping extend the lifetime of the battery bank.
【Battery Shelf Mode】 Supports switching the battery/battery bank to shelf mode to preserve power when it is not in use.
【Easy Operation】 Shows detailed battery bank information at the push of a page up/page down button without the need for system configuration or calibration.
Description
Package IncludesMonitoring Screen for Smart Lithium Battery Series x
Specification
| Electrical Specifications | Mechanical Specifications |
|---|---|
| Supply Voltage: 12VDC | Communication Port: RJ45 (RS485 Protocol) |
| Supply Current: 30mA | Display: Backlit LCD |
| Power Consumption: <1W | User Interface: 2 Front Panel Menu Buttons, 1 Power Button |
| Operating Temperature Range: -4°F~113°F / -20°C~45°C | Mounting System: Wall Mount |
| Voltage Accuracy: ±0.1V | Dimension: 2.76 x 4.33 x 1.25 inch / 70 x 110 x 31.8 mm |
| Current Accuracy: ±0.1A | Weight: 0.14 lbs / 62 g |
| Accessories | |
| RJ45 Communication Cable: 5m/16.4ft | Self-tapping Screws: M2.9 x13 |
| Certification: CE ROHS FCC EMC | Material and workmanship warranty: 1 Year |
