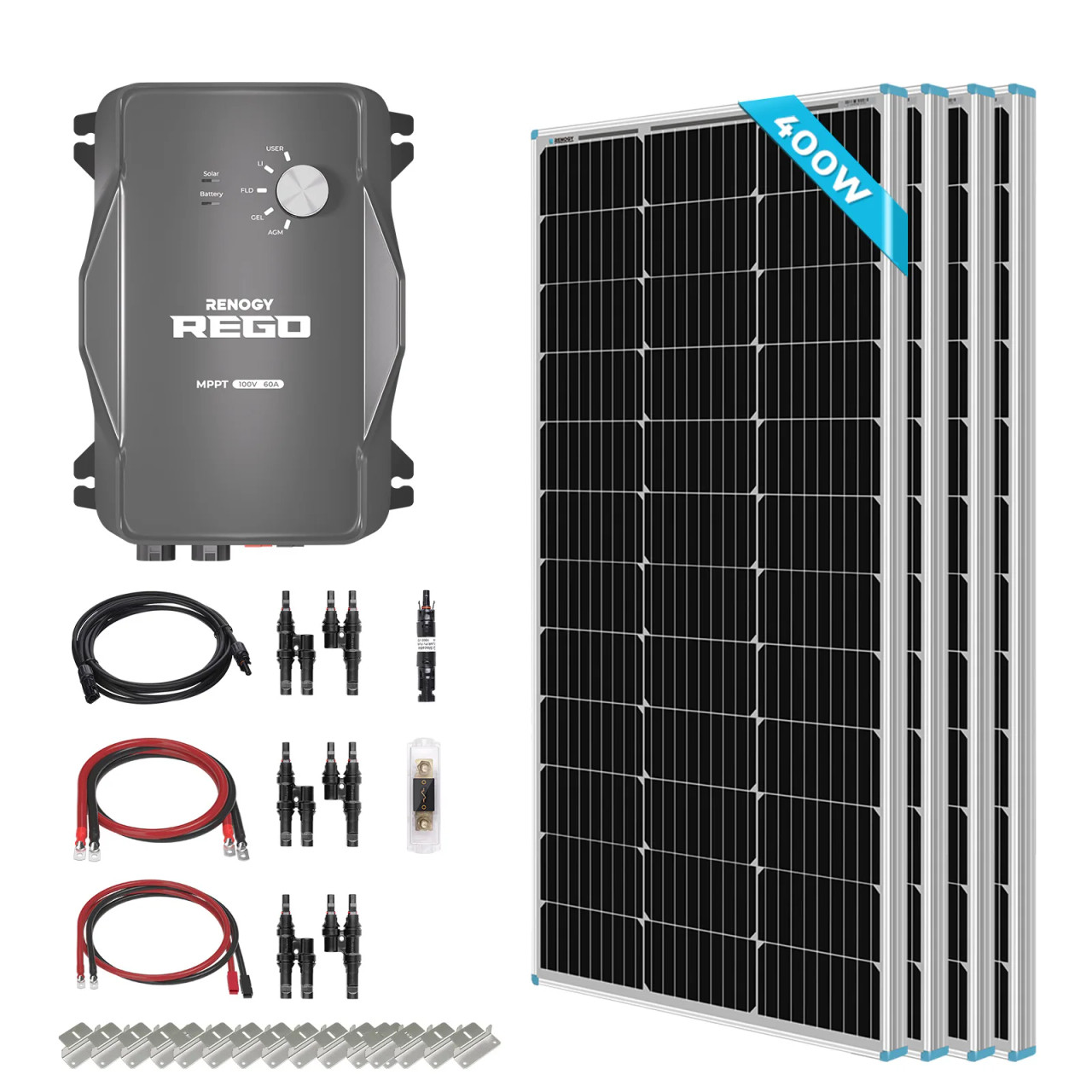

New 400 Watt 12 Volt Solar Premium Kit W/MPPT or REGO Solar Charge Controller
$609.99
【Work with Renogy ONE】 Spend extra $89.99 get the Renogy ONE Core.
【Efficient Performance】 The Premium Kit will produce an average of 1.6-2.5kWh of electricity per day (depending on sun availability). By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in a low-light environment.
【Solid Quality】 Advanced encapsulation material with multi-layered sheet laminations to protect cells from physical damage or distortion, improving cell performance and providing a long service life. Corrosion-resistant aluminum frame ideal for outdoor use. TPT back sheet dissipates excess heat, ensuring smooth output performance. EL tested; 5-year material and workmanship warranty.
【Easy Installation and Operation】 The solar panels with pre-drilled holes on the back frame allow quick installation. And the REGO charge controller uses Anderson terminals with a specially designed Anderson to MC4 adaptor cable for a simple and easy way to connect the controller to your solar panels, cutting installation time by 60%!
【Puts Monitoring and Control in Your Hands】 Built-in Bluetooth allows you to monitor the REGO charge controller on your smartphone with the Renogy DC Home App. With the app, you can customize multiple battery data such as the boost voltage, float voltage, and duration data.
【Ready to Install】 Pre-drilled holes on the back frame allow quick installation. The kit has a complete set of accessories and is equipped with an In-line fuse and ANL fuse components to offer more protection.
【Stay Connected】 Easily monitor by your phone. The BT1 Bluetooth module can pair with Renogy DC Home App and transmits system operation data directly to your phone, the Bluetooth signal available up to 82ft.
【Full System Protection】 The integrated high BPU (Battery Protect Unit) technology of the REGO charge controller achieves the highest protection against battery cell damage and battery failure, safeguarding the entire system. The solar kit is equipped with an In-line fuse and ANL fuse components, devised to add overcurrent protection on your charge controller and battery bank.
Description
Package IncludesW Mono Solar Panel xOption Rover Li A MPPT Charge Controller xOption REGO V A MPPT Solar Charge Controller xft AWG AKft AWG Fuse Cableft AWG Tray Cable xMounting Z Brackets Set xBT Bluetooth Module xA Inline Fuse and A ANL Fuse xSolar Y Branch Connectors MMFFFM Pair x
Maximum Power:
100W
Maximum System Voltage:
600V DC (UL)
Open-Circuit Voltage (Voc):
24.3V
Optimum Operating Voltage (Vmp):
20.4V
Short-Circuit Current (Isc):
5.21A
Optimum Operating Current (Imp):
4.91A
Dimensions:
41.8 x 20.9 x1.4 in
Weight:
14.1lbs/6.4kg
Nominal System Voltage:
12V/24V Auto Recognition
Rated Charge Current:
40A
Max. PV Input Voltage:
100 VDC
Max. PV Input Power:
12V/520W, 24V/1040W
Max Battery Voltage:
32V
opc:
Rating Voltage:
600/1000V
Length:
8ft
Wire Gauge:
8AWG
Temperature:
-40°F to +185°F
Length and Wire Gauge:
2ft and 8AWG
Rating Voltage:
AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature:
-40°F to +194°F
opc:
Length:
20ft
Wire Gauge:
10AWG
Rating Voltage:
600/1000V
Temperature:
-40°F to +185°F
Input Voltage:
5V
Communication Range:
≤82ft
Compatibel Models:
All Renogy Controllers with RJ12 port
Operation Temperature:
-20℃~85℃（-4°F to 185°F）
Rated Current:
10A
Rated Voltage:
1000 V DC
Contact Material:
Copper, Silver Plated
Replaceable Fuse:
Cylindrical PV Fuse (10x38mm)
Current Rating:
40A
Voltage Rating:
72V
Interrupt Capacity:
80A
opc:
Withstanding voltage:
1000V DC(TUV), 600V(UL)
Rated Current:
50A
Protection Degree:
IP67, mated
Temperature :
-40°F to +194°F
Protection Class:
Class II
opc:
Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets:
Four Nuts
Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty
Accessories:
1-year material and workmanship warranty
