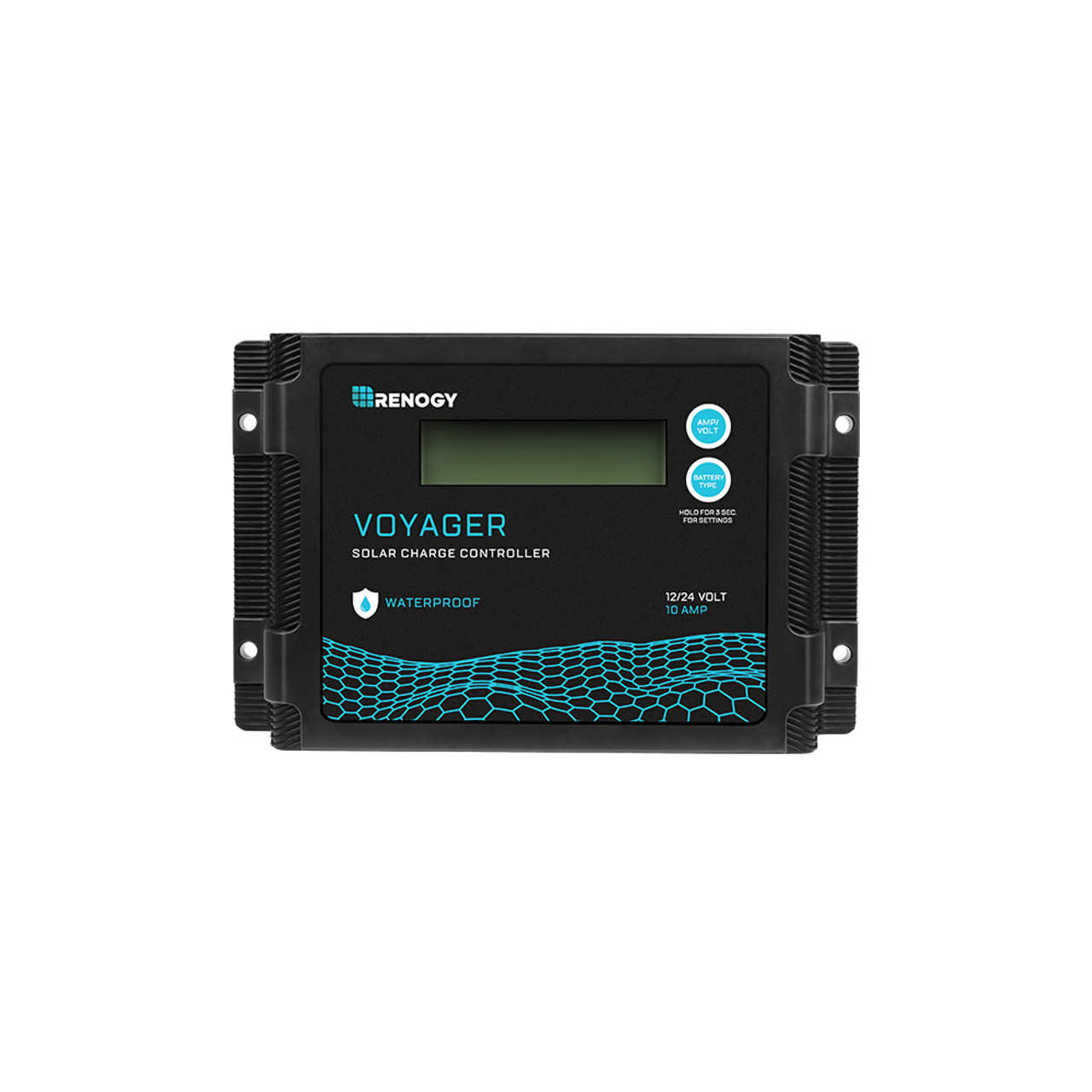

New Edition Voyager 10A PWM Waterproof Solar Charge Controller

Package IncludesNew Edition Voyager A PWM Waterproof Solar Charge Controller x

Nominal Voltage:
12V/24V

Rated Charge Current:
10A

LCD SCREEN:
Yes

Max. PV Input Voltage:
55 VDC

Max. PV Power:
130W (12V) / 260W (24V)

Self-consumption:
0.22W (12V) / 0.72W (24V)

Temperature Compensation:
-3mV/°C/2V, excludes LI

Operating Temperature:
-31°F to 113°F

Storage Temperature:
-31°F to 167°F

Enclosure:
IP67

Dimensions:
6.08 x 3.83 x 1.40 inches

Terminals:
20-6 AWG, 2 pin connectors

Weight:
0.55 lbs

Grounding:
Common Positive

Accessories:
2-year material warranty
