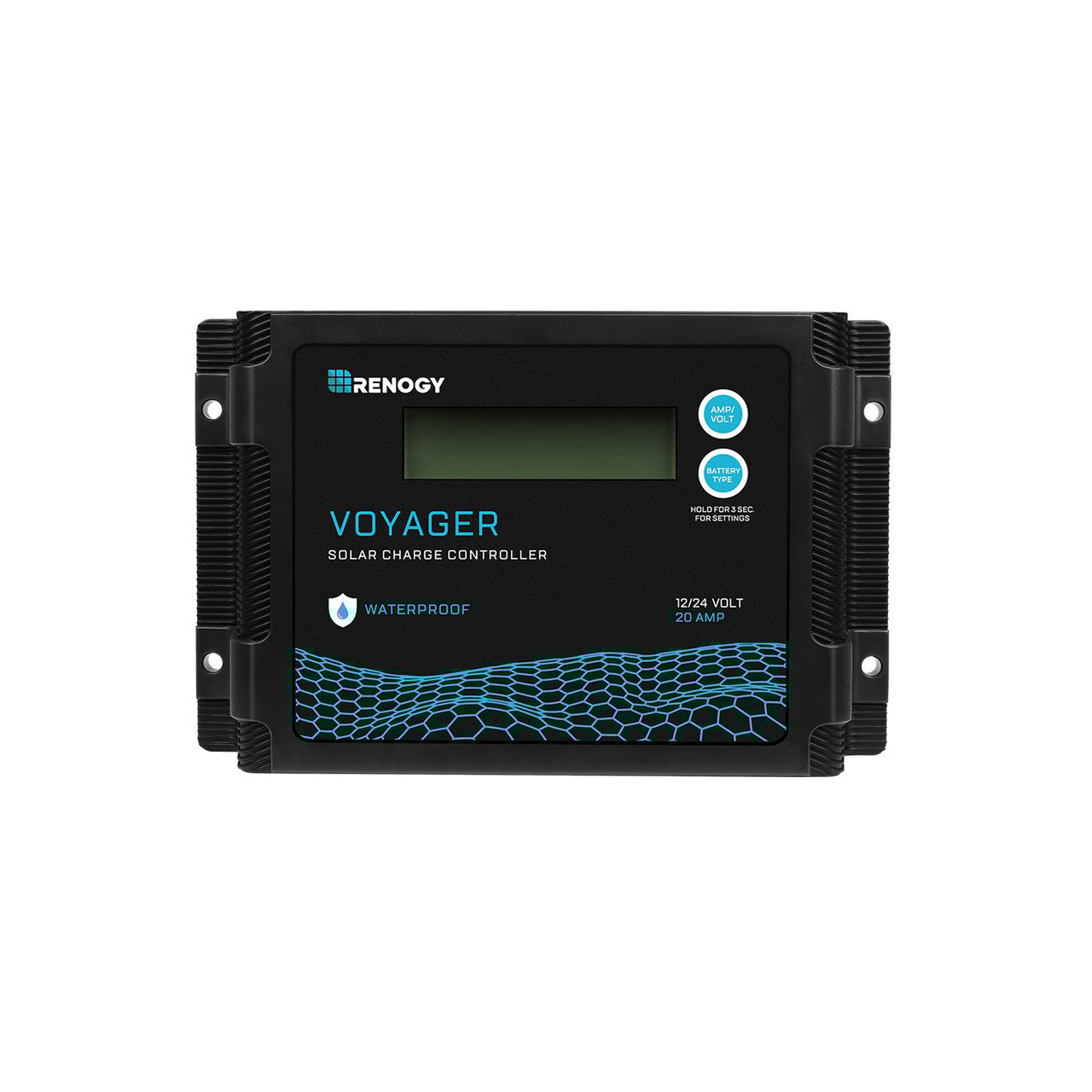

New Edition Voyager 20A PWM Waterproof Solar Charge Controller
$59.99
【4-STAGE PWM Technology】 】The Voyager controller is equipped with advanced smart PWM technology with high charging efficiency. It provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery.
【IP67 Rated Waterproof】 With an IP67 rated waterproof design, the Voyager controller is suitable for outdoor use and will remain fully operational when exposed to water spray, rain, or condensation.
【Multiple Protections】 The Voyager controller has multiple intelligent protections against reverse polarity, over charge, short-circuit, reverse current, overload, and over discharge, keeping your battery fully protected.
【Support Multiple Battery Types】 The Voyager controller can automatically sense 12V or 24V system voltage when paired with a Gel, AGM, or Flooded batteries. It also comes with a Lithium activation feature.
【Backlit LCD displaying system】 The Voyager comes with an LCD display showing accurate and timely information including charging current, generated energy, temperature, battery voltage, and error codes that allows users to monitor and control charging.
Description
Package IncludesNew Edition Voyager A PWM Waterproof Solar Charge Controller x
Nominal System Voltage:
12/24V Auto-Detection (For Non-Lithium Batteries)
Rated Charge Current:
20A
PV Input Voltage Range:
15V-55V
Max. Pv Open Circuit Voltage:
12V@25V 24V@55V
Max. PV Input Power:
12V @ 260W / 24V@520W
Battery Types:
SLD/AGM, GEL, FLD. LI
Power Consumption:
12V @ 0.24W / [email protected]
Max Battery Voltage:
32V
Ground Type:
Positive
Electrical Protection:
Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection
Communication Port:
N/A
opc:
Protection Level:
IP67
Operating Temperature Range:
-31°F – 113°F
Storage Temperature Range:
-31°F – 167°F
Operating / Storage Humidity:
10%-90%, No Condensation
Temperature Compensation:
‘-3mV/C/2V excludes LI
opc:
Dimensions:
6.08*3.83*1.40 in
Weight:
0.55Ibs
Max. Cable Size:
6 AWG
Controller Terminals:
20 – 6 AWG, 2-pin terminals
Temperature Sensor RTSVOY-US:
22AWG 10FT
opc:
