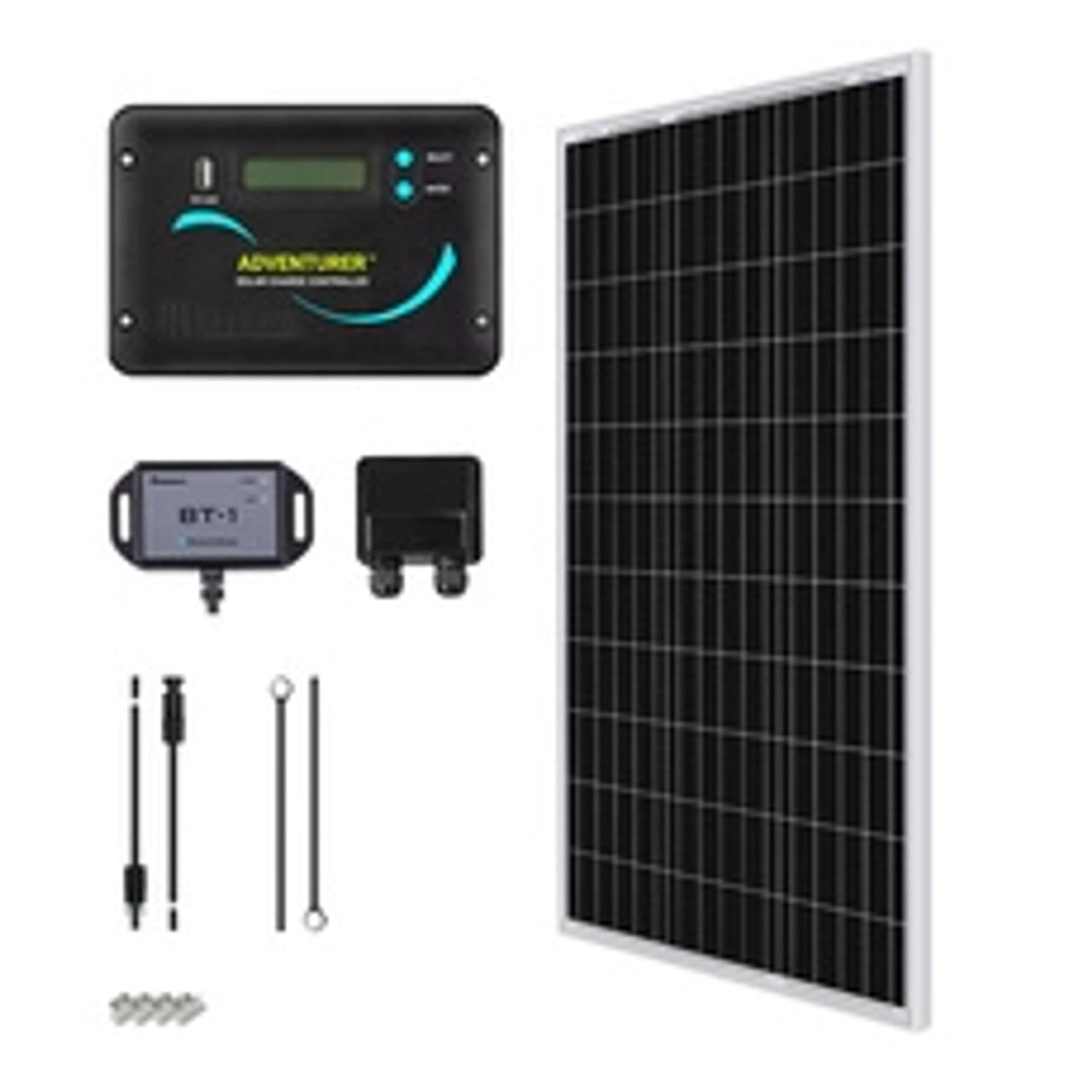

Open Box 100 Watt 12 Volt Solar RV Kit

Package IncludesW Mono Solar Panel xRenogy AdventurerA PWM Charge Controller xRenogy ft AWG Tray Cables xRenogy ft AWG Solar Adaptor Kit xCable Entry Housing xMounting Z Brackets Set xRenogy BT Bluetooth Module x

Maximum Power:
100W

Maximum System Voltage:
600V DC (UL)

Open-Circuit Voltage (Voc):
24.3V

Optimum Operating Voltage (Vmp):
20.4V

Short-Circuit Current (Isc):
5.21A

Optimum Operating Current (Imp):
4.91A

Dimensions:
41.8 x 20.9 x1.4 in

Weight:
14.1lbs/6.4kg

Nominal Voltage::
12 VDC

Rated Charge Current:
30A

Max. PV Input Voltage:
25 VDC

Max. PV Input Power:
400W (12V)

Length:
16ft

AWG:
10

Rating Voltage:
600V

Temperature:
-40°F to +185°F

Length:
30ft

AWG:
10

Rating Voltage:
600/1000V

Temperature:
: -40°F to +185°F

Model:
BT-1

Standby Power Consumption:
0.04W

Communication Range:
≤15m

Dimensions:
2.6 X 2.01 X 0.61 In

Material:
UV-resistant ABS Plastic

Weight (each component):
7.9 oz.

Recommended Adhesive:
Sikaflex 252 or alike

Dimensions (l x w x h):
4.7 x 3.9 x 2.0 in

Cable Gland Diameter Range:
6mm – 12mm

opc:


Eight Long Cap Bolts and Four Short Bolts:
our Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets:
Four Nuts

Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10 year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
