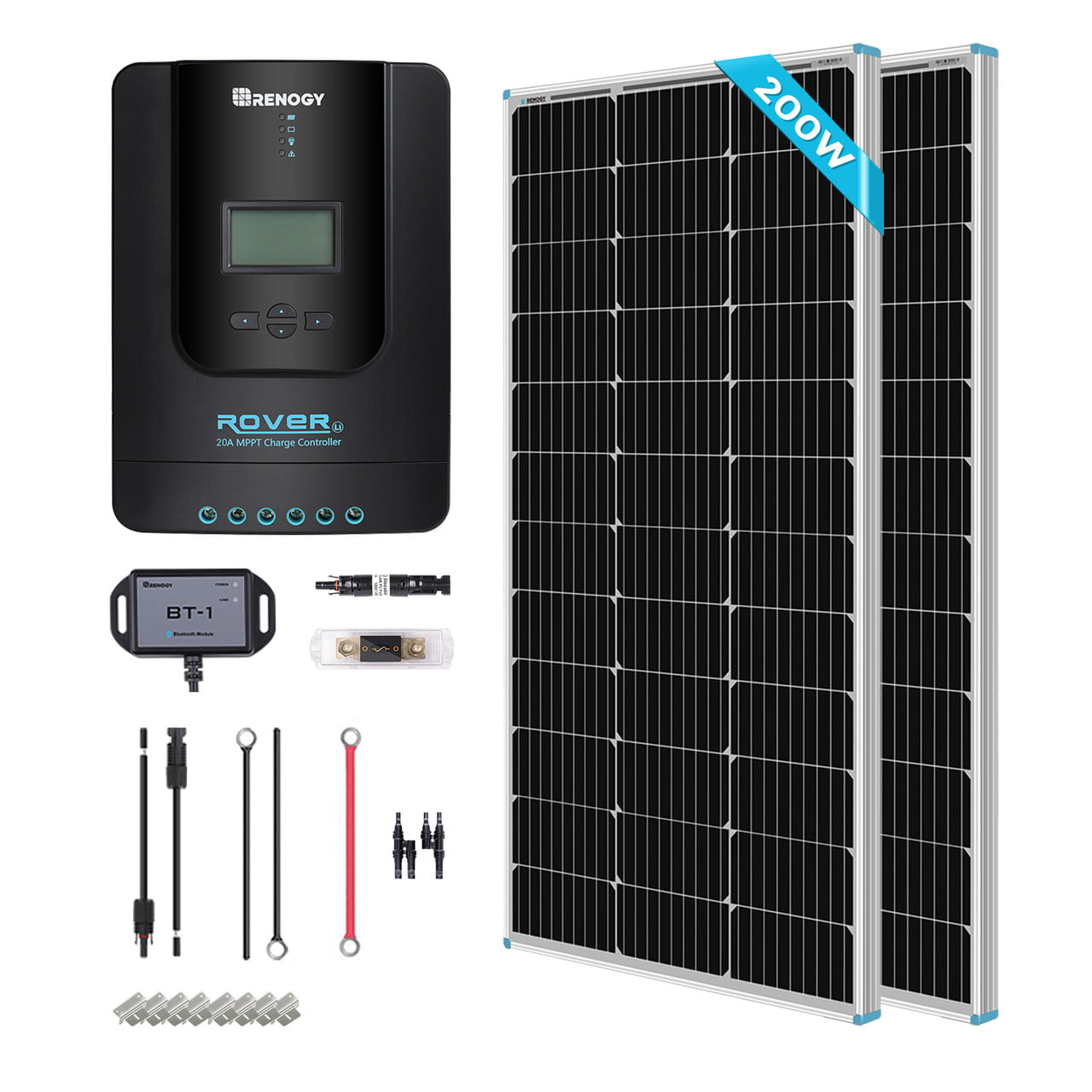

Open Box New 200 Watt 12 Volt Solar Premium Kit

Package IncludesW Mono Solar Panel xRover A MPPT Charge Controller xft AWG AKft AWG Fuse Cableft AWG Tray Cable xMounting Z Brackets Set xBT Bluetooth Module xA Inline Fuse and A ANL Fuse xSolar Y Branch Connectors MMFFFM Pair x

Maximum Power:
100W

Maximum System Voltage:
600V DC (UL)

Open-Circuit Voltage (Voc):
24.3V

Optimum Operating Voltage (Vmp):
20.4V

Short-Circuit Current (Isc):
5.21A

Optimum Operating Current (Imp):
4.91A

Dimensions:
41.8 x 20.9 x1.4 in

Weight:
14.1lbs

Nominal Voltage:
12V/24V DC Auto Recognition

Rated Charging Current:
20A

Rated Load Current:
20A

Max. Battery Voltage:
32V

Max. PV Input Power:
260W/12V, 520W/24V

Max. PV Input Voltage:
100VDC

Operating Temperature:
-35°C to +45°C

Max.Terminal Size:
8AWG

Rated Load Current:
10% to 90% NC

Overall Dimension:
8.3 x 5.9 x 2.3 in

Length:
20ft

Wire Gauge:
10AWG

Rating Voltage:
600/1000V

Temperature:
-40°F to +185°F

Rating Voltage:
600/1000V

Length:
8ft

Wire Gauge:
10AWG

Temperature:
-40°F to +185°F

Length and Wire Gauge:
2ft and 10AWG

Rating Voltage:
AC Uo/U 0.6/1 KV, DC 1.8KV

Temperature:
-40°F to +194°F

opc:


Rated Current:
10A

Rated Voltage:
1000 V DC

Contact Material:
Copper, Silver Plated

Replaceable Fuse:
Cylindrical PV Fuse (10x38mm)

Current Rating:
20A

Voltage Rating:
72V

Interrupt Capacity:
40A

opc:


Withstanding voltage:
1000V DC(TUV), 600V(UL)

Temperature:
-40°F to +194°F

Protection Class:
Class II

Protection Degree:
IP67, mated

Rated Current:
50A

opc:


Input Voltage:
5V

Communication Range:
≤82ft

Compatible With:
All Renogy Controllers with RJ12 port

Operating Temperature:
– 20℃~85℃（-4°F to 185°F）

Eight Long Cap Bolts and Four Short Bolts:
Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets:
Four Nuts

Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
