Dakota Lithium & Zamp Solar 12v 200Ah Off-Grid Power System


Out of stock

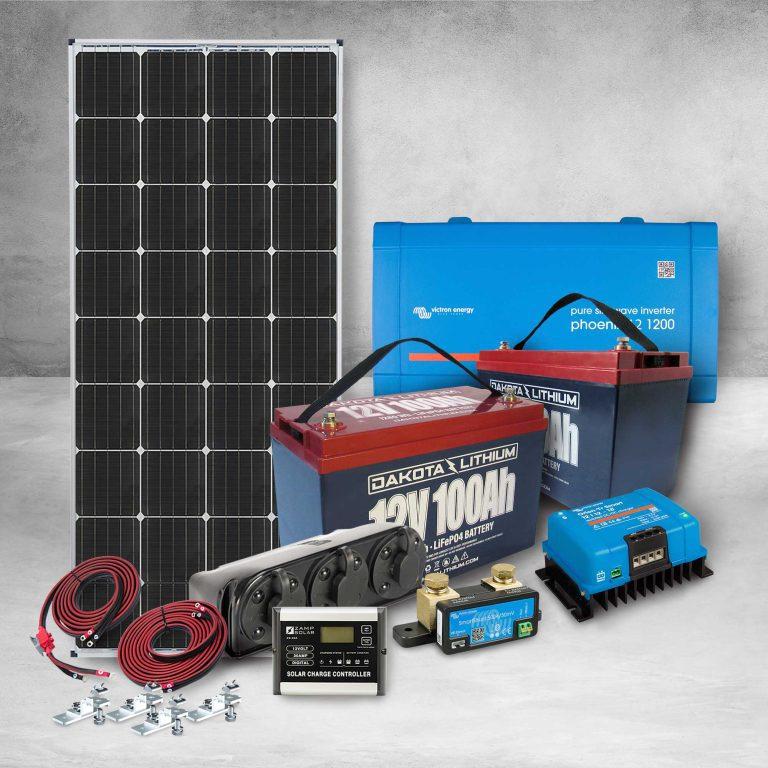

Live the dream and power your boat, RV, or small cabin with Dakota Lithium batteries and Zamp Solar panels. This is our #1 best selling off-grid electrical system. Bundle includes:

  • QTY 2 Dakota Lithium 100Ah LiFePO4 Battery with 11 year warranty.
  • QTY 1 Zamp Solar 170 watt rooftop kit with 25 year warranty.
  • QTY 1 Zamp rooftop solar mounting hardware and wiring kit.
  • QTY 1 Zamp solar charge controller.
  • QTY 1 Victron Energy 1200VA Phoenix DC to AC inverter.
  • QTY 1 Victron Energy Victron Orion-TR smart 12/12-18A isolated DC-DC charger with Bluetooth.
  • QTY 1 Victron Smart Shunt 500A/50MV Bluetooth Battery Monitor.
  • QTY 2 Dakota Lithium 12V 10A LiFePo4 battery charger.


Engineered with Lithium Iron Phosphate (LiFePo4) technology your Dakota Lithium batteries have twice the power, half the weight, and lasts 4 times longer than sealed lead acid or AGM batteries – providing exceptional lifetime value. 200 Amp hours of total capacity provides a full day of power for long days on the open road in your RV. Ideal for deep cycle applications like solar energy storage, RVs, camper vans, or boating, where you need lots of power for a long time. All backed up by a best in class 11 year warranty. LiFePO4 charger included.


The 170 watt Zamp Solar panel kit offers enough power to charge most single or dual 12-volt battery banks. Power your RV, boat or trailer with 170-watts, with the option to expand it up to 510-watts in the future by adding additional panels. Includes a 30-Amp, 5-stage PWM solar charge controller that is optimized for lithium, a pre-assembled wiring harness for connecting your panels to your batteries, a 3-port roof cap (so you are ready to add more panels!) and stainless steel mounting hardware.


The Victron Phoenix 1200VA inverter allow you to use 12V Dakota Lithium batteries to power household electronics that require 120V AC (the wall plug in your home). Rated at 1200VA this professional grade Victron inverter takes DC power (the power that comes from batteries or solar panels) and transforms it into AC power. 1200VA is the perfect size for small to mid sized boats, Sprinter or camper vans, RVs, job sites for charging power tools, or other off grid applications where you need plug and play power. 1200VA is a good size to run a medium sized TV, stereo, small kitchen appliances, computers, or other home electronics.


The Orion-Tr Smart DC-DC charger allows you to charge your deep cycle Dakota Lithium batteries using the alternator in your van, boat, or RV’s engine. The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the starter battery are used to charge the service battery (aka house or deep cycle battery). The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch. The Orion Tr-Smart charger can be used in 12V systems and is suitable for both lead acid and lithium batteries.


The Victron Smart Shunt 500A/50MV Bluetooth Battery Monitor allows you to monitor the performance of your system using the Victron app on your phone. Provides real time data on the performance of your system, including how much energy has gone into your batteries from your solar panels and/or from your engine’s alternator, how much energy you are currently using, and how much power you have left in your batteries. Provides piece of mind, and an overview of the performance of your electrical system.

SKU: DL-PID12V100AHX2ZB Category:



Suitable for:

  • Off Grid Electrical Systems
  • Recreational Vehicles
  • Solar Energy Storage
  • #VanLife & Van Builds
  • Boats & Cruising
  • Home Solar & Power Walls
  • Marine Applications
  • RV Camper Trailers
  • Off-Grid Cabins & Tiny Homes
  • Deep Cycle Applications Only. Not for starting gasoline engines
Storage Capacity

200 ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 200 amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.




2560 Watts (Wh)


M8 bolt size. Easy to adapt to different connection needs.


12.99 in (330mm) L x 6.77 in (172mm) W x 8.66 in (220mm) H


31.9 lbs (14.5Kg). That’s 60% lighter than a SLA battery.

Lifecycles (battery lifespan)

Up to 80% capacity for 2,000 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.

Operating temperature

Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20’F min, +120’F max optimal operating temps (battery performs well down to -20’F). Avoid charging below 32’F.


200 A max continuous, 400 A max pulse 10 second pulse. The flat discharge voltage curve provides a 75% bigger capacity then a SLA 100Ah battery.


50 A max, 14 V max recommended, 15 V max. Included is a LiFePO4 compatible charger. A SLA charger may work, but will reduce performance and lifespan of the battery.

Includes active BMS protection

Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.

Charger Included

2X 10A LiFePO4 charger included

NOT for Starting Engines

This is a deep cycle 12v battery. Not designed for starting gasoline engines.

DC-DC Engine to Battery Charger Included

Victron Energy Victron Orion-TR smart 12/12-19A isolated DC-DC charger with Bluetooth. Charges your Dakota Lithium battery using the electricity generated by your engines alternator.

Zamp Solar Panel Kit Included

170 watt solar panel kit included. Plus everything you need to connect your solar panels to your batteries, including a solar charge controller, wiring harness, and mounting hardware.

Battery Monitor Included

Victron Smart Shunt 500A/50MV Bluetooth Battery Monitor provides real time data on your electrical systems performance via the Bluetooth App

Inverter Included

1200VA Victron Energy Phoenix inverter allow you to use 12V Dakota Lithium batteries to power household electronics that require 120V AC (the wall plug in your home).


All batteries are UN 38 certified. Dakota Lithium’s cells are UL1642 certified and have been tested per IEC62133 standards. Meets all US & International regulations for air, ground, train, & marine transport.
