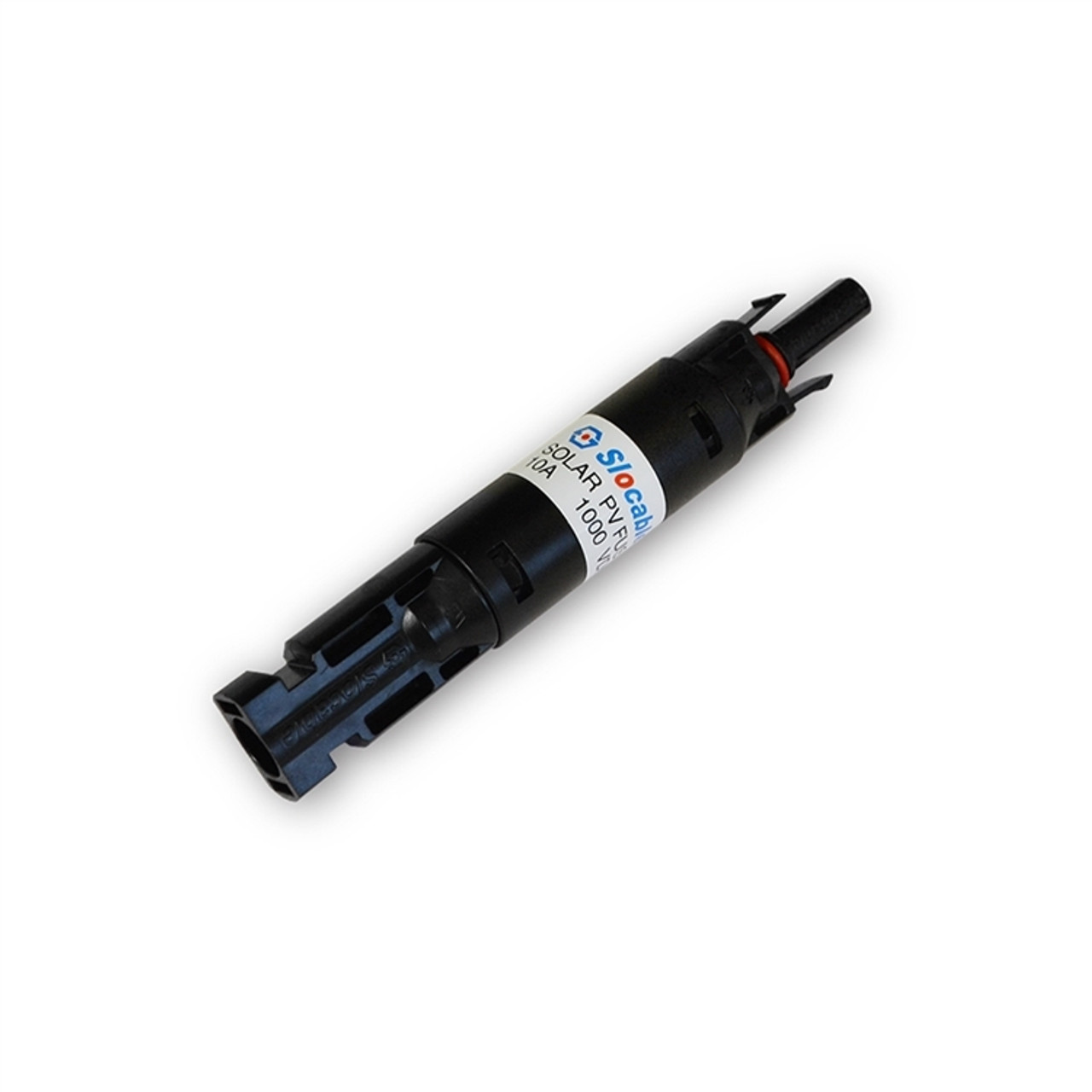

Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
$15.99
This product is a 10A/15A/20A/30A inline fuse embedded into a waterproof fuse holder. It features an solar connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.
Description
Package IncludesSolar Connector Waterproof InLine Fuse Holder w Fuse x
Specification
| 10A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse | |
|---|---|
| Rated Current: 10A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz,1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Solar Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper, Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
| 15A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse | |
|---|---|
| Rated Current: 15A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz,1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Solar Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper, Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
| 20A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse | |
|---|---|
| Rated Current: 20A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz,1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Solar Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper, Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
| 30A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse | |
|---|---|
| Rated Current: 30A | Degree of Protection: IP2*/IP67 |
| Rated Voltage: 1000 V DC | Flame Class: UL94-V0 |
| Test Voltage: 6000V (50Hz,1 min) | Safety Class: II |
| Overvoltage Category: CATIII | Suitable Connector: Solar Connector |
| Contact Resistance of Plug Connector:1mΩ | Insertion Force / Withdrawal Force: ≤50N / ≥50N |
| Contact Material: Copper, Silver Plated | Fuse Can Replace |
| Insulation Material: PPO | Temperature Range: -40 to +125°C |
Warranty Information
| Accessories | 1-year material warranty |
