Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
Roll over image to zoom in
Click to open expanded view

Solar Connector Waterproof In-Line Fuse Holder w/ Fuse

$15.99

Out of stock

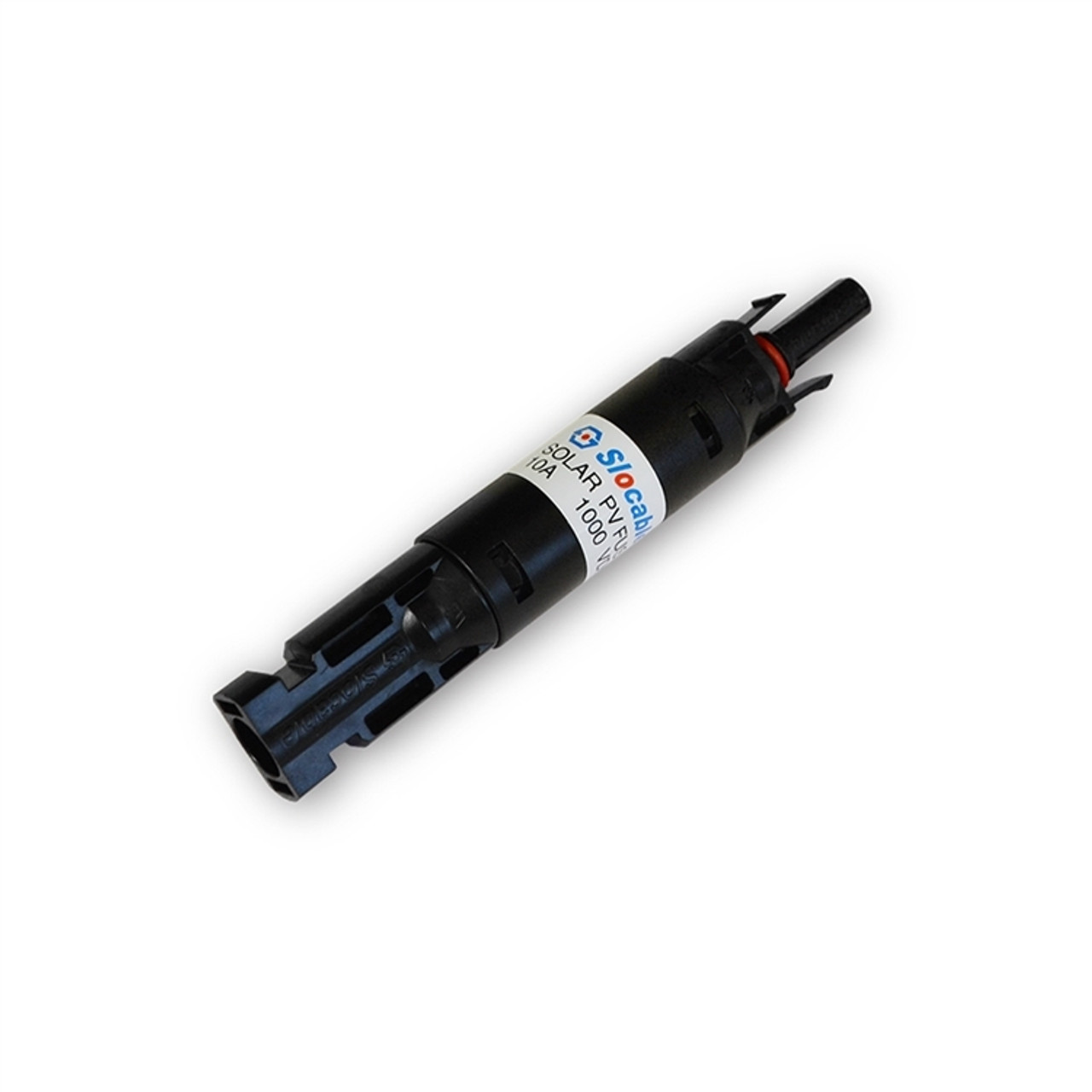

This product is a 10A/15A/20A/30A inline fuse embedded into a waterproof fuse holder. It features an solar connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.

SKU: RY-RNG-CNCT-FUSE10-US Category:

$15.99

Description

Package IncludesSolar Connector Waterproof InLine Fuse Holder w Fuse x

Specification


10A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
Rated Current: 10A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: Solar Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C
15A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
Rated Current: 15A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: Solar Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C
20A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
Rated Current: 20A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: Solar Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C
30A Solar Connector Waterproof In-Line Fuse Holder w/ Fuse
Rated Current: 30A Degree of Protection: IP2*/IP67
Rated Voltage: 1000 V DC Flame Class: UL94-V0
Test Voltage: 6000V (50Hz,1 min) Safety Class: II
Overvoltage Category: CATIII Suitable Connector: Solar Connector
Contact Resistance of Plug Connector:1mΩ Insertion Force / Withdrawal Force: ≤50N / ≥50N
Contact Material: Copper, Silver Plated Fuse Can Replace
Insulation Material: PPO Temperature Range: -40 to +125°C



Warranty Information

Accessories 1-year material warranty


Specification

Additional information

Brand

Reviews (0)

Only logged in customers who have purchased this product may leave a review.

Reviews

There are no reviews yet.
