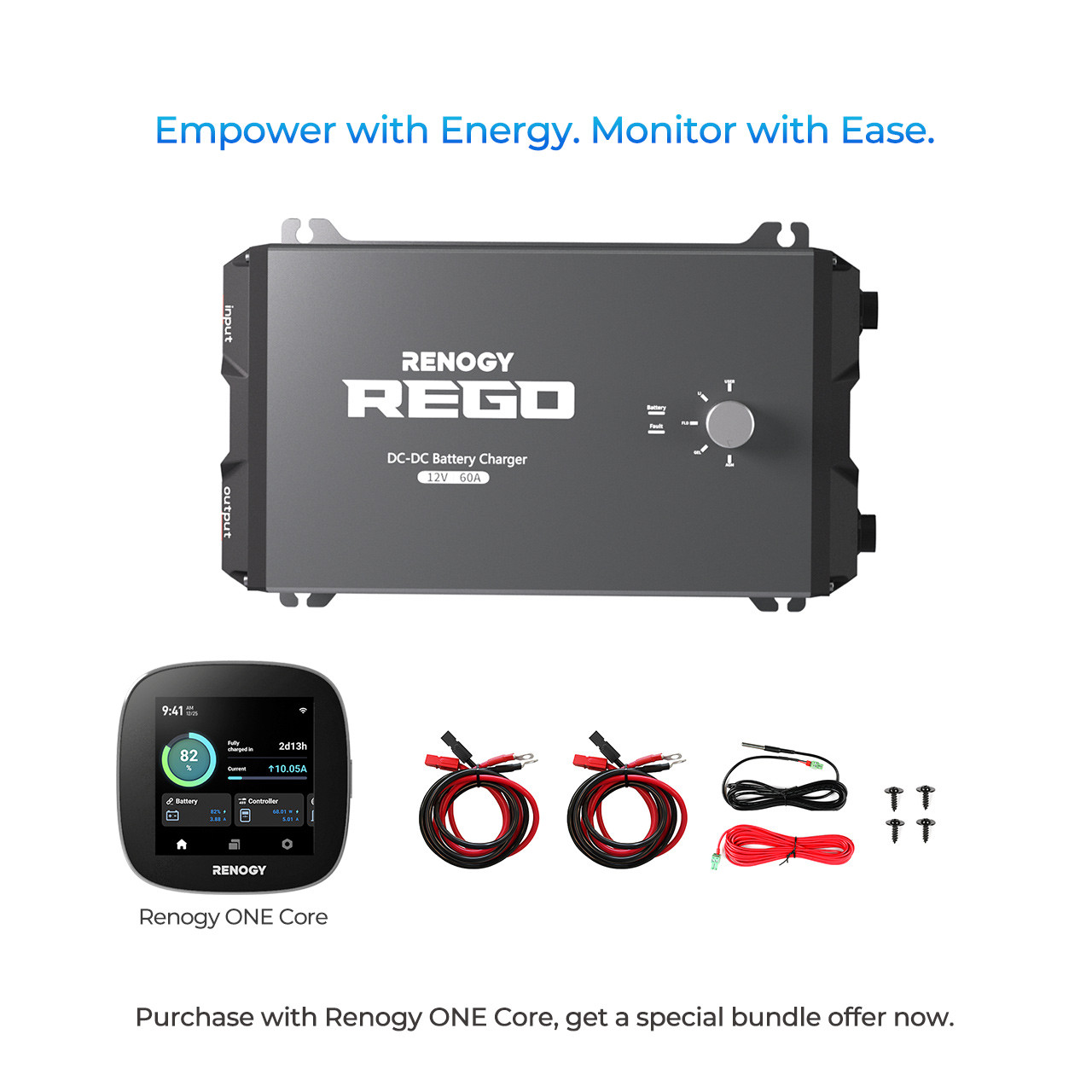

REGO 12V 60A DC-DC Battery Charger w/ Renogy ONE Core
$559.99
【Work With RENOGY ONE】 Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. This all-in-one display provides you access to accurate energy system data anywhere, anytime via the DC Home app.
【Exclusive Bidirectional Charging】 This battery charger can charge your house batteries from the starter battery when driving and recharge your starter battery when the house batteries are full. Keep your house batteries and starter battery at peak performance on the go.
【Easy Installation and Operation】 REGO DC-DC battery chargers use Anderson terminals instead of ring terminals for a simple, easy connection that reduces installation time by 60%! REGO’s simple design eliminates tedious data settings and lets you select the battery type by just turning a knob.
【High-Efficiency Charging】 4-stage charging technology (Bulk, Float, Absorption and Equalize) maximize charging efficiency and optimizes battery performance for a longer lifespan.
【Compatible with Most Batteries and Alternators】 The REGO DC-DC battery charger is compatible with the most common types of batteries: AGM, SLD, Flooded, Gel, and Lithium, providing a powerful solution for different applications. Moreover, it’s also compatible with both traditional and smart alternators.
【Integrated Safety Features】 REGO chargers offer Overvoltage Protection, Overtemperature Protection, and Reverse Polarity Protection on both inputs and outputs to ensure the operation safety. . They have reverse polarity protection and multiple safety certifications including FCC-ID, CE-RED, MIC, etc.
Description
Package IncludesREGO V A DCDC Battery Charger xAccessories with the DCDC X Mounting Screws X IGN Signal Wire Red X Renogy Temperature Sensor BlackFT AWG ANDERSON ADAPTER CABLE FOR OUTPUT SIDEAnderson PP in Lugs XFT AWG ANDERSON ADAPTER CABLE FOR INPUT SIDEAnderson PP in Lugs X
System Voltage:
12V
Rated Max Charge Current:
60A
Rated Max Charge Power:
800 W
Battery Types:
SLD/AGM;FLD;GEL;USER;LI
Self-Consumption:
≤50 mA
Max.Alternator Input Current:
70A
Charge Efficiency:
Up to 94%
Max.Alternator Input Power:
800W
Max.Alternator Input Voltage:
16V
Battery Operating Range:
10 -16V
Alternator Input Voltage:
Traditional Alternator: 13.5-16VDC
Alternator Input Voltage:
Smart Alternator (Euro 6): 12.5-16VDC
Power Limiting Protection:
Up to 800W/12V
Operating Temperature Range:
-20 ℃ – 60℃ / -4 ℉ – 140℉
Grounding Type:
Common Negative Lug
Storage Temperature Range:
-35 ℃ – 65℃/ -31℉ – 149℉
Communication:
Modebus ; RV-C
Humidity:
0%-95%, No Condensation
Dimensions (L x W x D):
13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm
Temperature Compensation:
‘-3mV / ℃ / 2V (Non-Lithium)
Temperature Compensation:
‘0mV / ℃ / 2V; no compensation (Lithium)
Weight:
7 lbs/ 3.12kg
Terminal Size:
Anderson PP75
Terminal Range:
8AWG – 6AWG
Product Warranty:
5 Year
opc:
CB:
Yes
FCC:
Yes
CE:
Yes
UKCA:
Yes
MIC:
Yes
opc:
