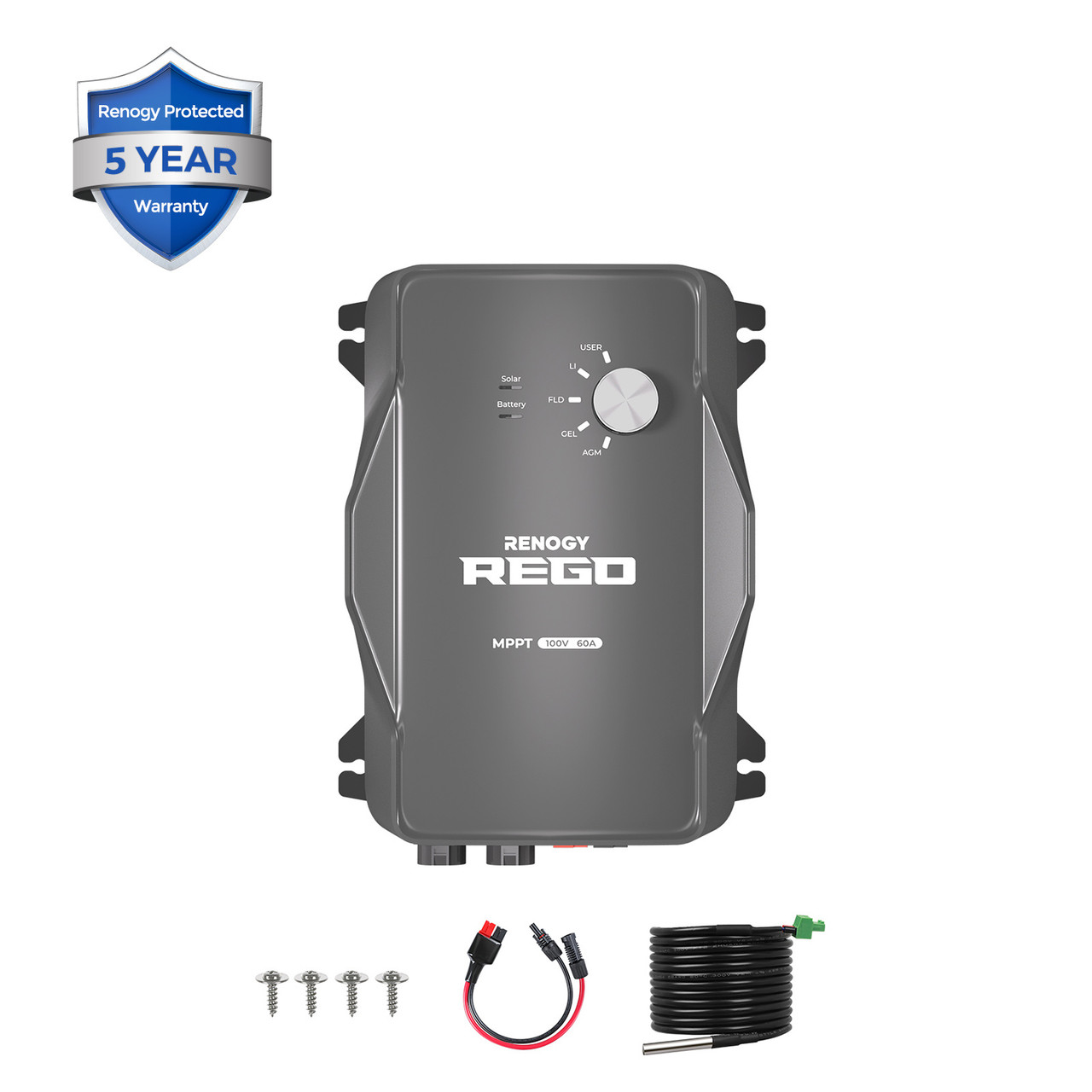

REGO 12V 60A MPPT Solar Charge Controller w/ Renogy ONE Core
$439.99
【Work With RENOGY ONE】 Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. This all-in-one display provides you access to accurate energy system data anywhere, anytime via the DC Home app.
【Comprehensive Protections for Whole System】 The REGO charge controller with multiple protections on both solar input and battery output terminals. The integrated high BPU (Battery Protect Unit) technology achieves the highest protection against battery cell damage and battery failure, safeguarding the entire system.
【Easy Installation and Operation】 REGO charge controller use Anderson terminals with a specially designed Anderson to MC4 adaptor cable for a simple and easy way to connect the controller to your solar panels, cutting installation time by 60%! REGO’s simple design eliminates tedious data settings and lets you switch between batteries by just turning a knob.
【Ultra-High Tracking Efficiency】 Innovative MPPT technology of the REGO provides high tracking efficiency of up to 99% and peak conversion efficiency of 98%, which is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day. Adopts a four-stage charging（Bulk， Boost， Float， EQU), ensuring high charging efficiency and optimizing the battery status for a longer lifespan.
【Compatible with Multiple Batteries Types】 The REGO charge controller is compatible with multiple types of batteries: AGM, SLD, Flooded, Gel, and Lithium, able to be perfectly and easily added to your solar system, providing a powerful solution for different occasions.
【Puts Monitoring and Control in Your Hands】 Built-in Bluetooth allows you to monitor the REGO charge controller on your smartphone with the Renogy DC Home App. With the app, you can customize multiple battery data such as the boost voltage, float voltage, and duration data.
【Note】 Select the following two options,connect this charge controller to a NON-REGO house battery,etc.
【Perfect with Renogy 175W/200W Panel】 You can use the 12V 60A REGO MPPT Charge Controller to link your 175 Watt Monocrystalline Solar Panel or 200 Watt 12 Volt Monocrystalline Solar Panel and battery more efficiently, portable, and secure than other MPPT charge controllers.
Description
Package Includes REGO V A MPPT Charge Controller xRenogy Temperature Sensor xSolar Adapter Cable XMounting Screws xOptions FT AWG Anderson Adapter Cable XOptions FT AWG Anderson Adapter Cable x
Nominal System Voltage:
12 V
Rated Charge Current:
60A
Max. PV Input Power:
800W
MPPT Voltage Range:
15 – 100 VDC /12V
Solar Input Voltage Range (VOC):
100 V
Max Input Current (short-circuit, Isc):
50A
Power Limiting Protection:
Up to 800W/12V
Battery Operating Range:
10 -16V
Power Consumption:
≤0.5 W
Ground Type:
Common Negative Lug
Battery Types:
AGM/Sealed, GEL, FLOODED, LFP, USER*
Electronic Protections:
Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection
Operating Temperature Range:
-20 ℃ – 60℃
Storage Temperature Range:
-25 ℃ – 65℃
Operating / Storage Humidity:
0%-90% RH
Temperature Compensation:
‘-3mV / ℃ / 2V (Non-Lithium)；’0mV / ℃ / 2V; no compensation (Lithium)
Dimensions:
9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm
Weight:
5.07 lbs/ 2.30kg
Terminals Size:
Anderson PP75
opc:
Remote Monitor:
Bluetooth Module BT-2 (RS485 / CAN bus signal)
opc:
CE and RoHS compliant:
YES
FCC Class B Part 15 Compliant:
YES
Material and workmanship warranty:
5 Year
opc:
