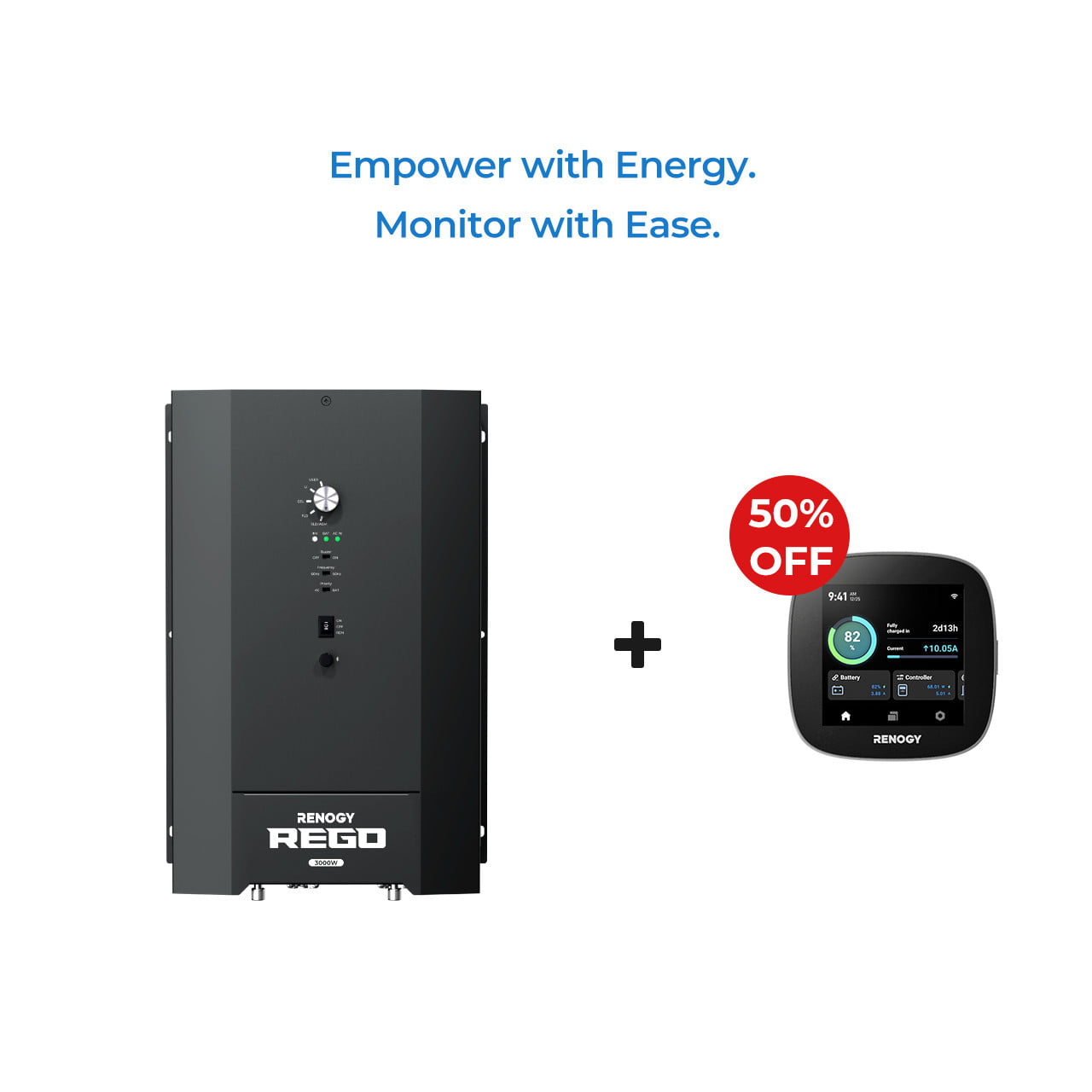

REGO 3000W 12V Pure Sine Wave HF Inverter Charger Split-phase Design w/ Renogy ONE Core
$959.99
-High-frequency inverters feature lightweight design and minimal noise.
-An all-in-one solution for 120/240VAC split-phase applications.
-Output of up to 6000W in grid-connected scenarios.
-Quality pure sine wave delivers consistent, smooth power.
-Enhanced control with built-in bluetooth & RV-C communication.
Description
Package IncludesNOTEIf you have any questions regarding this product please call us at or submit a ticket for troubleshooting assistanceMore questions about your offgrid power system Learn more from Renogy Learning CenterW Pure Sine Wave HF Inverter Charger xBattery Temperature sensorxVoltage detection line xInverter Wired Remote Control x
Continuous Power:
3000W
Surge Power(100ms):
9000VA
Surge Power(5 seconds):
4500VA
Surge Power (10 seconds):
3600W
AC Output Voltage Range:
120V± 3%
Output Frequency (Nominal):
50/60 Hz ± 0.1%
Output Waveform:
Pure Sine Wave
Efficiency:
>92%
THD:
<3%
DC Input Voltage:
DC12V
DC Input Voltage Range:
9~17Vdc(Full load 11V to 15.8V DC)
No Load Current Draw:
Normal: <20W; Power Saving: <10W
Output Current:
150A @25°C, 5A to 150A adjustable, 5A intervals, default 150A”
Optimal Efficiency:
>90%
Nominal Input Voltage:
Split phase: 180-280 VAC; Single phase: 90-140 VAC “
Input Frenquency Range:
50/60Hz,±5Hz
Input Wave Form:
Sine Wave (Utility or Generator)
opc:
Transfer Time:
~ 10ms
Transfer Rating:
50A Maximum Bypass @120V AC
Battery Types:
GEL, AGM, SLA, FLD, CAL, LI, USER
Noise:
<47dB
Operating Temperature:
Full load: -4°F to 113°F / -20°C to 45°C; Down load: 113°F to 140°F / 45°C to 60°C
Dimensions:
19.37 x 13.11 x 5.31 in / 492 x 333 x 135 mm
Storage Temperature:
-40 ~ 70°C / -40 ~ 158°F
Weight:
22.7lbs/10.3Kg
Humidity:
0% ~ 95%
opc:
Dimensions:
2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
Wire length:
Approx 16.4ft
Inverters:
5 years
Accessoreis:
1 Year
EMC certification:
FCC Prat15 Class B
Safety:
UL-485 and CSA-C22.2 No 107.1
