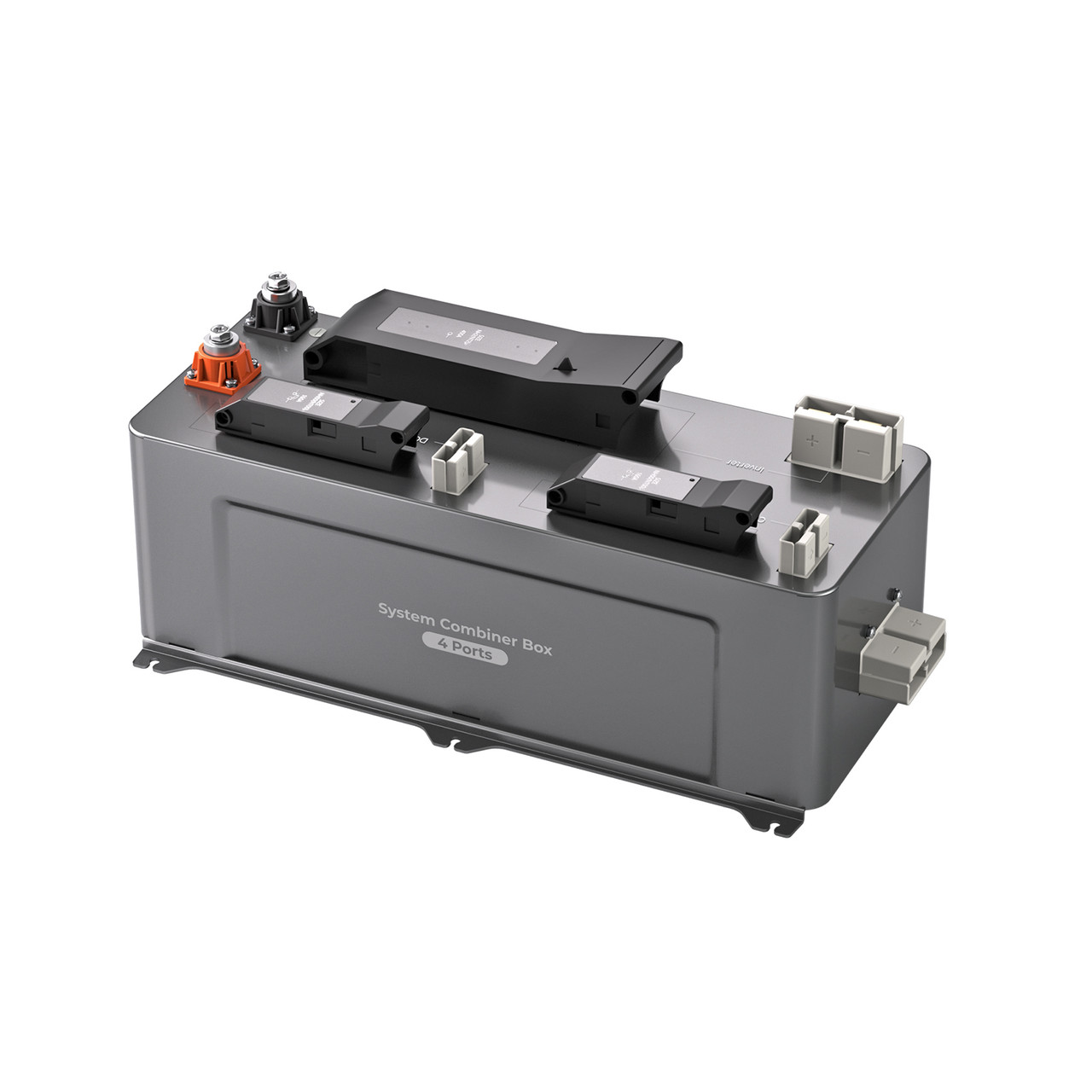

REGO 4 Port 400A System Combiner Box
$494.99
【Simple and Flexible Installation】 The plug-and-play Anderson terminals allow you to connect all the REGO products and reduce the system setup time significantly. The integrated insert terminals on the top of the system combiner box allow you to connect non-REGO components using ring terminal cables into your REGO system.
【Safer Connection】 The Anderson terminals provide extremely secure connections. No need for special tools or complicated wiring.
【Centralized Circuit Protection】 The fuses install easily into the fuse switch disconnectors on the top of the REGO combiner box. This provides centralized circuit protection to your system devices, the circuits can also be disconnected manually for maintenance.
【Strong System Compatibility】 The continuous current rating of the REGO system combiner box reaches 400A, which can perfectly handle the high power charging and discharging of the REGO system, furthermore adapt to most of other off-grid system.
【Expandable System Capacity】 Thanks to its’ modular design, the REGO system combiner box can be expanded by connecting with a REGO battery combiner box. One Battery Combiner Box can connect with up to 3 REGO batteries, and multiple battery combiner boxes are expandable by connecting to accept more batteries, up to 8 batteries can be connected in parallel, offering a total capacity of up to 40KWh effortlessly.
Description
Package IncludesREGO Ports A System Combiner Box x
Model:
REC400RSCB-4P
Rated Current:
400A
Connector:
Anderson 120 Connectors (2), Anderson 350 Connectors (2)
Connector Rated Voltage:
600VAC/DC
Connector Rated Current:
240A (Anderson 120 Connector), 500A (Anderson 350 Connector)
Fuse Switch Disconnector:
NH00 (2), NH2 (1)
Fuse Switch Disconnector Rated Voltage:
400VAC/250VDC
Fuse Switch Disconnector Rated Current:
160A (NH00), 400A (NH2)
Terminal:
M8 Insert Terminals (2)
Terminal Screw:
M8 x 1.25 x 20 mm
Terminal Torque:
70.8 inch·lbs (8 N·m)
Operating Environment Temperature:
-4°F~122°F (-20°C~50°C)
Dimension:
533 x 240 x 170 mm (20.98 x 9.45 x 6.29 inch)
Weight:
18.0 kg (39.68 lbs)
Material and Workmanship Warranty:
1 Year
opc:
Specification
Additional information
| Brand |
|---|
Reviews
There are no reviews yet.
