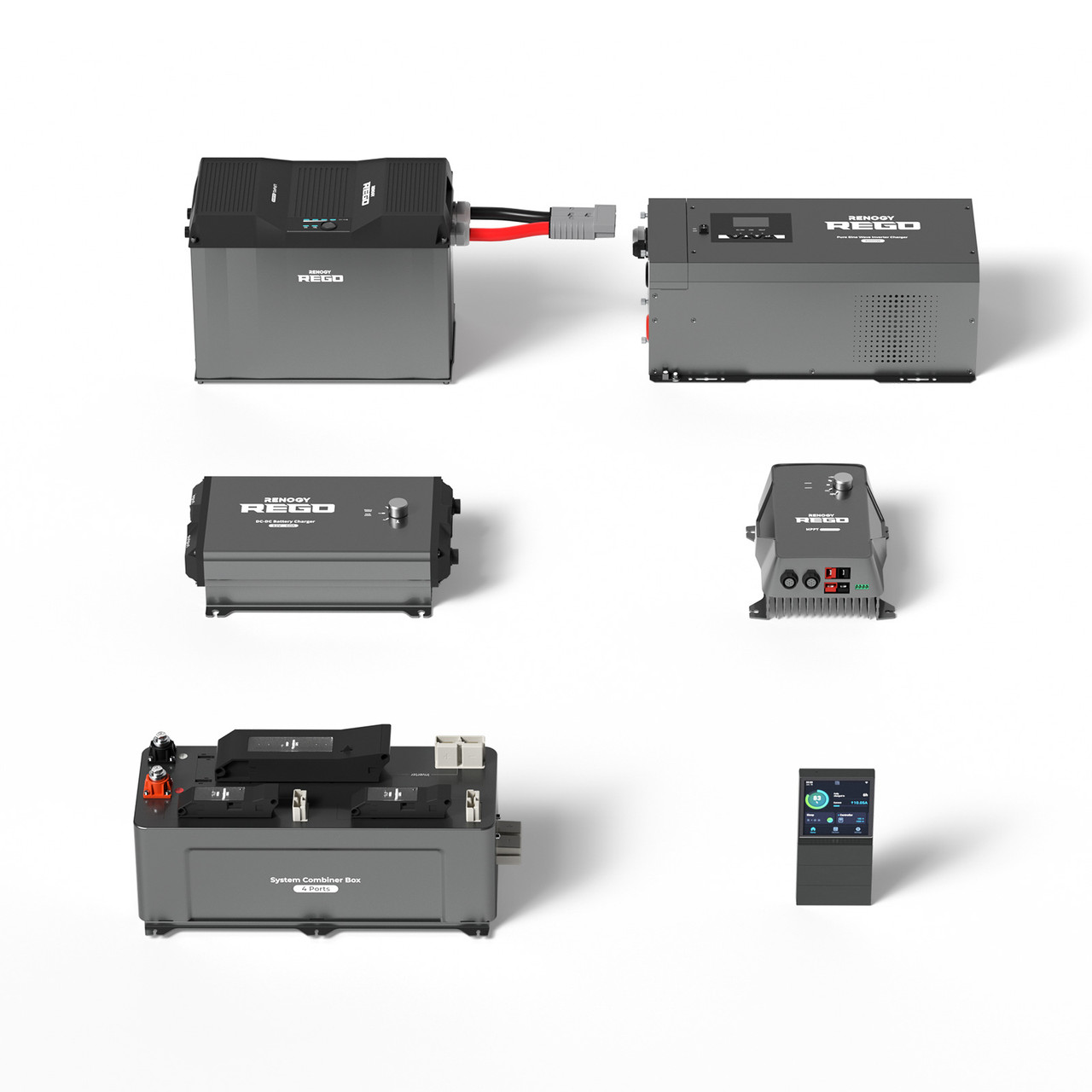

REGO off-grid power system

Package Includes REGO V A MPPT Solar Charge Controller xREGO V A DCDC Battery Charger xREGO V Ah Lithium Iron Phosphate Battery XREGO V W Inverter Charger XREGO System Combiner Box XSubscription Plan Smart Life XFT AWG Anderson Adapter CableAnderson PP Anderson SB XFT AWG Anderson Adapter CableAnderson PP in Lugs XFT AWG Anderson Adapter CableAnderson SB in Lugs XNH A Fuse XNH A Fuse X

Nominal System Voltage:
12 V

Rated Charge Current:
60A

Max. PV Input Power:
800W

MPPT Voltage Range:
15 – 100 VDC /12V

Solar Input Voltage Range (VOC):
100 V

Max Input Current (short-circuit, Isc):
50A

Power Limiting Protection:
Up to 800W/12V

Battery Operating Range:
10 -16V

Power Consumption:
≤0.5 W

Ground Type:
Common Negative Lug

Battery Types:
AGM/Sealed, GEL, FLOODED, LFP, USER*

Electronic Protections:
Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection

Operating Temperature Range:
-20 ℃ – 60℃

Storage Temperature Range:
-25 ℃ – 65℃

Operating / Storage Humidity:
0%-90% RH

Temperature Compensation:
‘-3mV / ℃ / 2V (Non-Lithium)；’0mV / ℃ / 2V; no compensation (Lithium)

Dimensions:
9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm

Weight:
5.07 lbs/ 2.30kg

Terminals Size:
Anderson PP75

opc:


CE and RoHS compliant:
YES

FCC Class B Part 15 Compliant:
YES

Material and workmanship warranty:
5 Year

opc:


System Voltage:
12V

Rated Max Charge Current:
60A

Rated Max Charge Power:
800 W

Battery Types:
SLD/AGM;FLD;GEL;USER;LI

Self-Consumption:
≤50 mA

Max.Alternator Input Current:
70A

Charge Efficiency:
Up to 94%

Max.Alternator Input Power:
800W

Max.Alternator Input Voltage:
16V

Battery Operating Range:
10 -16V

Alternator Input Voltage:
Traditional Alternator: 13.5-16VDC

Alternator Input Voltage:
Smart Alternator (Euro 6): 12.5-16VDC

Power Limiting Protection:
Up to 800W/12V

Grounding Type:
Common Negative Lug

Communication:
Modebus ; RV-C

opc:


Operating Temperature Range:
-20 ℃ – 60℃ / -4 ℉ – 140℉

Storage Temperature Range:
-35 ℃ – 65℃/ -31℉ – 149℉

Humidity:
0%-95%, No Condensation

Temperature Compensation:
‘-3mV / ℃ / 2V (Non-Lithium)

Temperature Compensation:
‘0mV / ℃ / 2V; no compensation (Lithium)

opc:


Dimensions (L x W x D):
13.91 x 8.37 x 4.02 in / 353.53 X 212.75 X 102.21mm

Weight:
7 lbs/ 3.12kg

Terminal Size:
Anderson PP75

Terminal Range:
8AWG – 6AWG

CB:
Yes

FCC:
Yes

CE:
Yes

UKCA:
Yes

MIC:
Yes

opc:


Product Warranty:
5 Year

opc:


Nominal Voltage:
12.8V

Energy:
5120Wh

Cycle Life (0.2C, 20±5℃):
3800 Cycles at 80% DOD

Internal Resistance:
≤ 10 mΩ

Minimal Rated Capacity (0.2C):
400Ah

Specific Energy:
100.39Wh/kg

Charge Voltage:
14.4V

Maximum Charge Current:
300A

Charge Cut-off Voltage:
14.4V

opc:


Maximum Continuous Discharge Current:
350A

Discharge Cut-off Voltage:
10V

Operation Temperature Range:
Charge: 32~131℉ / 0～55℃；Discharge: -4~140℉ / -20～60℃；Recommended: 59~86 ℉ / 15～30℃

Storage Temperature Range:
Less Than 1 Week: -22°F~140°F (-30°C~60°C)； Less Than 6 Months: -4°F~113°F (-20°C~45°C)

Dimension (L x W x H):
18.0 x 13.0 x 10.5 inch /457 x 329 x 267.2 mm

Wiring Length:
23.6 inch/600 mm

Weight:
112.4 lbs/ 51 kg

Housing Material:
Die Cast Aluminum/Extruded Aluminum

MSDS, UN38.3, FCC，UL1973:
Yes

opc:


Material warranty:
5 Year

opc:


Continuous Power:
3000W

Surge Power:
9000W

AC Output Voltage Range:
100~120VAC configurable, 5V interval

Output Frequency (Nominal):
50/60 Hz ± 0.1%

Output Waveform:
Pure Sine Wave

Efficiency:
> 90%

Output Current:
5-75A configurable, 5A intervals

Optimal Efficiency:
>85%

Nominal Input Voltage:
120 VAC

Input Voltage Range:
90-138 VAC

Input Frenquency Range:
40Hz – 70Hz

Input Wave Form:
Sine Wave (Utility or Generator)

Transfer Time:
~ 10ms

Transfer Rating:
30A Automatic Transfer Switch

Battery Types:
GEL, AGM, SLA, FLD, CAL, LI, USER

Noise:
<50dB

Operating Temperature:
‘-20 ~ 40°C / 0 ~ 104°F

Dimensions:
20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm

Storage Temperature:
-30 ~ 70°C / -22 ~ 158°F

Weight:
63.5 lbs / 28.8 Kg

Humidity:
0% ~ 95%

opc:


FCC Class B Part 15 Compliant:
Yes

opc:


Inverter warranty:
2 Year

Accessoreis warranty:
1 Year
