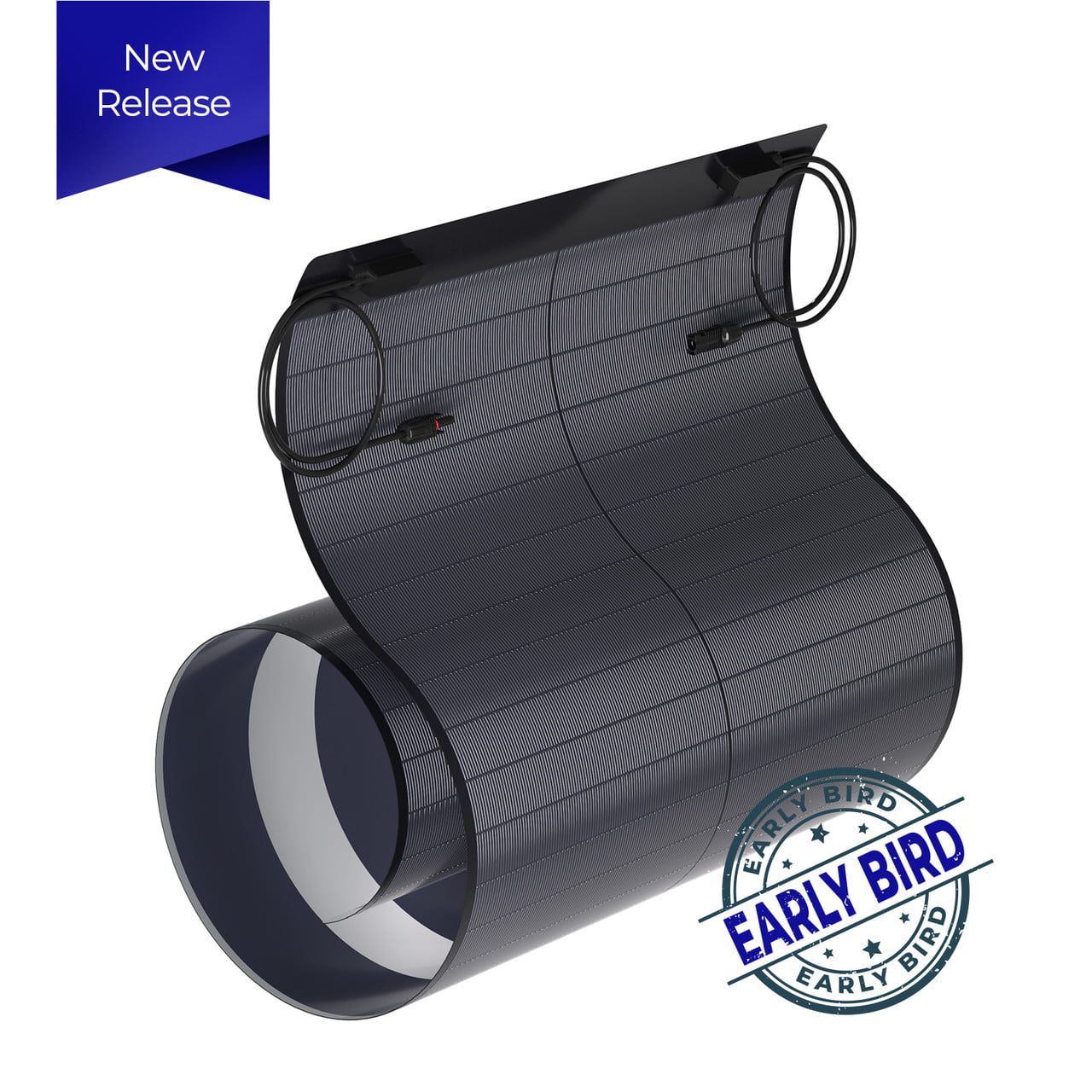

Renogy 150W CIGS Solar Panel

Package IncludesNOTEIf you have any questions regarding this product please call us at or submit a ticket for troubleshooting assistanceMore questions about your offgrid power system Learn more from Renogy Learning Center Watt CIGS Solar Panel x

Max Power at STC:
150W

Module Efficiency:
14%

Open Circuit Voltage:
23.75V

Short Circuit Current:
9.34A

Optimum Operating Voltage:
18.66V

Optimum Operating Current:
8.04A

Maximum System Voltage:
600VDC

Maximum Series Fuse Rating:
15A

Operating Temperature:
-40°F~185°F / -40℃~85℃

Dimensions:
65.3×25.4×0.06 in(1658*646*1.5 mm)

Weight:
6.61 lbs(3.0kg)

Cell Type:
Monocrystalline

Junction Box:
IP68

MC4 Solar Connectors:
IP68

Material and workmanship warranty:
5 years

Performance:
5 year 90% output warranty 25year 80% output warranty

CE:
YES

Manufactured in a Certified ISO 9001 Facility:
YES
