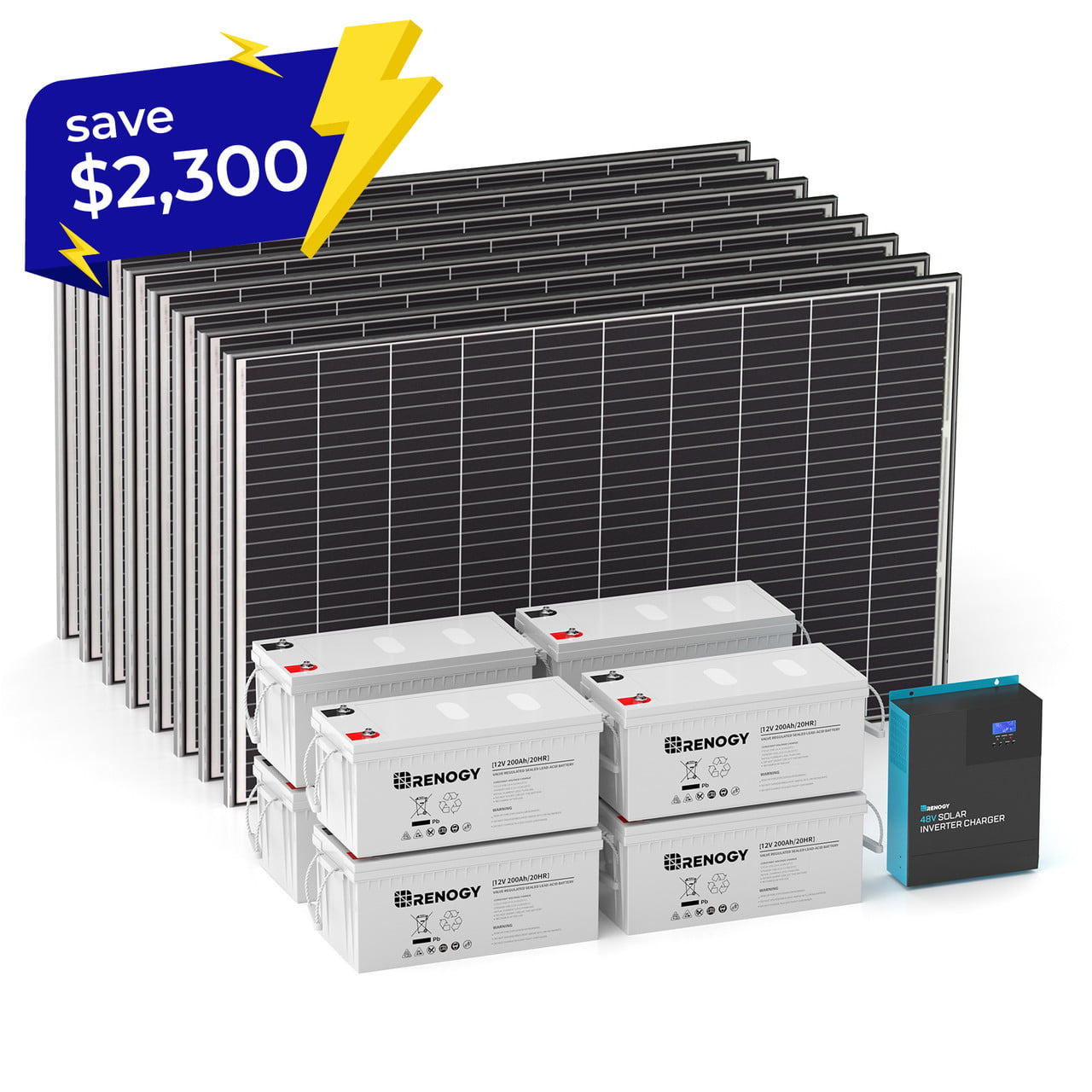

Renogy 2.5kW Essential Plus Kit

Package IncludesRenogy kWh Essential Plus KitQuantityTitle Pieces of Watt Monocrystalline Solar PanelFt AWG Solar Panel to Charge Controller Adaptor Kit PairA P DC Miniature Circuit BreakerDC Circuit Breaker BoxA P DC Miniature Circuit BreakerFt AWG Battery to Charge Controller Tray Cables for in Lugs PairFt AWG Solar Stranded Copper PV WireA P DC Molded Case Circuit BreakerV W Solar Inverter ChargerV Ah AGM BatteryInch AWG Copper Battery Interconnect Cable for Inch LugsFt AWG Copper Battery Inverter Cables for Inch Lugs PairBT Bluetooth Module

Maximum Power at STC:
320W

Optimum Operating Voltage (Vmp):
32.7V

Open-Circuit Voltage (Voc):
40.1V

Optimum Operating Current (Imp):
9.79A

Short-Circuit Current (Isc):
10.36A

Operating Temperature:
-40°F to 185°F

Cell Efficiency:
21%

Maximum System Voltage:
1000V DC (UL)

Maximum Series Fuse Rating:
15A

Weight:
39.7lbs

Dimensions:
65.6 x 39.4 x 1.4 in

Certifications:
CE, ISO, UL

Output Waveform:
Pure Sine Wave

Continuous Output Power:
3500W

Peak Power Rating:
7000W

Output Voltage:
120VAC±5%

Output Frequency:
50 Hz ± 0.3% 60 Hz± 0.3%

Input Voltage / Rated Battery Voltage:
48VDC (minimum start-up voltage 44V)

Charge Controller Type:
MPPT

Maximum Input Power:
4800W

Maximum Input Current:
50A

Dimensions:
16.8*12.7*4.9 in / 426*322*124 mm

Weight:
23.8 lbs /10.8kg

opc:


Battery Type:
AGM

Rated Capacity:
200Ah (20 Hour Rate to 10.5V)

Nominal Voltage:
12V

Internal Resistance:
Approx. 3.5mΩ

Connection Method:
In Series, and In Parallel (up to 4)

Dimensions:
20.6 x 9.4 x 8.8 in / 522 x 240 x 224 mm

Weight:
127.9 lbs / 58 kg

Standard Operation Temperature:
77°F±9°F（25°C±5°C）

Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
