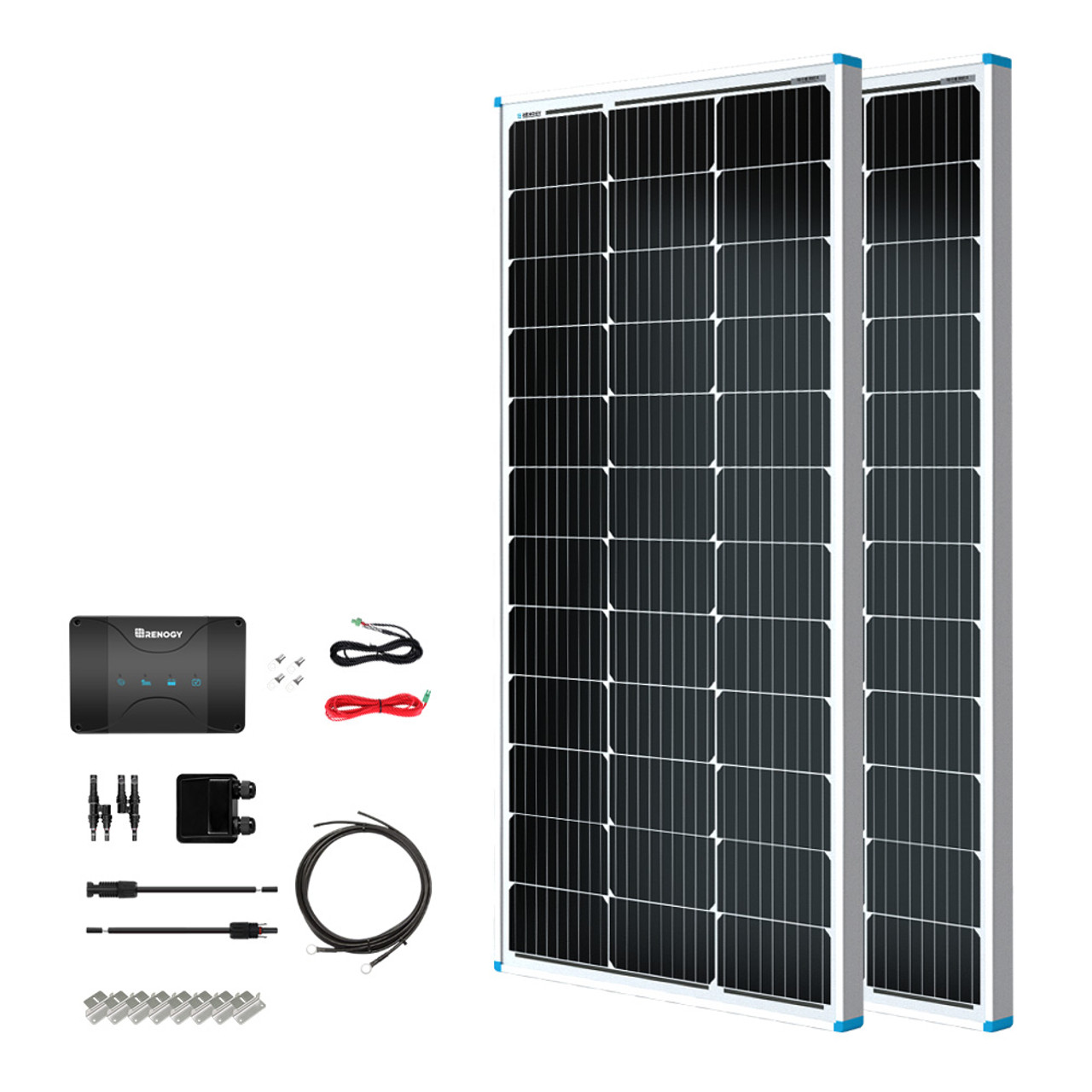

Renogy 200W 12V Solar RV Kit

Package IncludesSolar PanelQuantityTitleW V Rigid Solar PanelW V Rigid Solar PanelW V Flexible Solar PanelCharge ControllerQuantityTitleV A DCDC OnBoard Battery Charger with MPPTBatteryQuantityTitleV Ah LiFePO Battery W Bulitin BluetoothV Ah SelfHeating LiFePO Battery W BT ModuleInverterQuantityTitleW V Pure Sine Wave InverterANL Fuse Set w FuseFUSE CABLEAccessory SetBasicQuantityTitleSolar Panel Mounting Z Bracket Set of rigid solar panelSolar Y Branch Connectors MMFFFM PairW Solar PanelSolar Panel to Charge Controller Adaptor KitBattery to Charge Controller Tray CablesSolar Double Cable Entry GlandAccessory SetPremiumQuantityTitleSolar Panel Mounting Z Bracket Set of rigid solar panelSolar Y Branch Connectors MMFFFM PairW Solar PanelSolar Panel to Charge Controller Adaptor KitBattery to Charge Controller Tray CablesSolar Double Cable Entry GlandBT Bluetooth Module Holder w FuseANL Fuse Set w FuseTerminals for in Lugs

Max Power at STC:
100W

Open Circuit Voltage:
24.3V

Short Circuit Current:
5.21A

Optimum Operating Voltage:
20.4V

Optimum Operating Current:
4.91A

Operating Temperature:
-40°F to 176°F

Maximum System Voltage:
600V DC (UL)

Maximum Series Fuse Rating:
15A

Dimensions:
41.8 x 20.9 x1.38 in

Weight:
14.1lbs/6.4kg

Maximum Power at STC:
200W

Optimum Operating Voltage (Vmp):
19.2 V

Open-Circuit Voltage (Voc):
23V

Short Circuit Current:
11.05A

Optimum Operating Current (Imp):
10.42 A

Maximum System Voltage:
600V DC

Maximum Series Fuse Rating:
20A

Certifications:
CE, ISO

Operating Temperature:
-40°F to 194°F (-40ºC to +90ºC)

Dimensions:
58.7 x 27.5 x 1.38 in (1491 x 699 x 35 mm)

Weight:
26.46 lbs (12 kg)

opc:


Maximum Power at STC:
200W

Open-Circuit Voltage (Voc):
23.9V

Short Circuit Current:
10.74A

Optimum Operating Current (Imp):
10.02A

Maximum System Voltage:
600V DC

Maximum Series Fuse Rating:
15A

Operating Temperature:
-40°F to 176°F (-40ºC to +80ºC)

Dimensions:
1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)

Weight:
4.9 kg / 10.8 lbs

opc:


System Voltage:
9-16VDC

Maximum Charging Current:
30A

Battery Types:
SLD/AGM, GEL, FLD, LISER

Service Battery Charging Mode:
MPPT

Charging Efficiency:
Up to 97%

Max. Solar Input Voltage:
25V

Max. Solar Input Power:
400W

Terminal Size:
M8*1.25 – 10mm

Ground Type:
Negative

Operating Temperature Range:
-31°F – 149°F

Storage Temperature Range:
-40°F – 176°F

Dimensions:
9.6*5.7*3.0in

Weight:
3.13Ibs

Communication Protocol:
RS485

Battery Type:
Lithium Iron Phosphate

Rated Capacity:
100 Ah

Nominal Voltage:
12.8 V

Voltage Range:
10~14.8 V

Cycle Life(0.5C,25℃):
80%DOD 2000 Cycles

Connection Method:
Parallel(Up to 8)

Protection Rate:
IP65

Charge Voltage:
14.4V

Maximum Continuous Charging Current:
50 A

Maximum Continuous Discharging Current:
100 A

Standard Operation Temperature:
25℃±5℃

Charge Temperature:
32~131°F/ 0~55°C

Discharge Temperature:
-4~140°F/ -20~60°C

Communication Port:
Modbus

Built-in Bluetooth:
Yes

Dimensions:
12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm

Weight:
28.7 lbs. / 13.0 kg

opc:


Battery Type:
Lithium Iron Phosphate

Rated Capacity:
100AH

Nominal Voltage:
12.8 V

Cycle Life(0.2C,25℃):
80%DOD 4000 Cycles

Connection Method:
Parallel

Protection Rate:
IP54

Charge Voltage:
14.4V

Maximum Continuous Charging Current:
50 A

Maximum Continuous Discharging Current:
100 A

Automatically Self-heating Function:
Temperature < 41℉（5℃）

Standard Operation Temperature:
25℃±5℃

Storage Temperature:
-13~149℉ / -25~65℃

Communication Port:
RJ45 (RS485 Protocol)

Built-in Bluetooth:
No

Dimensions:
11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm

Weight:
26 lbs. / 11.8 kg

Continuous Output Power:
1000W

Peak Power Rating:
2000W

Output Voltage:
115V

Output Frequency:
60 Hz ± 0.1%

AC Output Sockets:
2

AC Terminal Block:
1

USB Power Port:
5V/2.1A

Power Output Control:
AC On/Off Switch, and Remote Control

Output Waveform:
Pure Sine Wave

Nominal Efficiency:
> 90%

Operating Temperature Range:
-4°F – 104°F

Cooling Fan:
Thermally controlled

Dimensions:
12.9 x 6.8 x 3.3 in

Weight:
6.0 lb

Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
