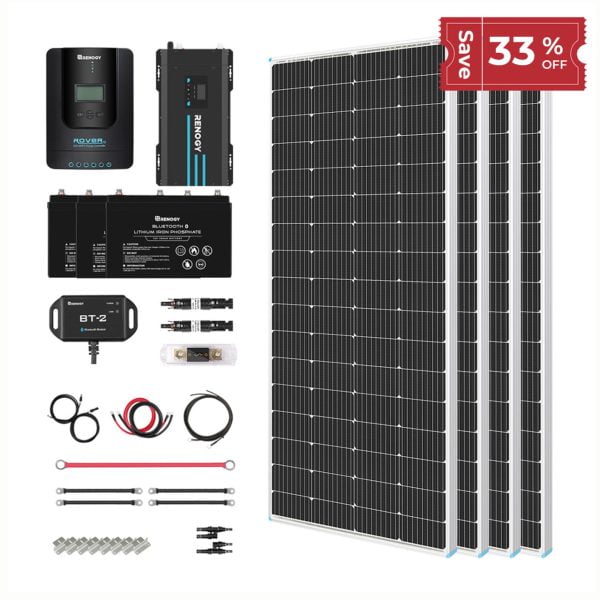

Renogy 800W 12V General Off-Grid Solar Kit

Package IncludesRKITBCRDQuantityTitleW V Rigid Solar PanelRover A MPPT W LCD BT ModuleSolar Panel Mounting Z Bracket Set of Solar Y Branch Connectors MMFFFM PairSolar Panel to Charge Controller Adaptor KitBattery to Charge Controller Tray CablesHolder w FuseA ANL Fuse Set w FuseTerminals for in LugsBT Bluetooth Module New VersionRKITPMRDLIBTRKITPMRDLIHQuantityTitleRKITBCRDV Ah LiFePO Battery W Bulitin Bluetooth or V Ah SelfHeating LiFePO Battery W BT ModuleCopper Battery Interconnect CableRKITPMRDLIBTPRKITPMRDLIBTPCL RKITPMRDLIHPRKITPMRDLIHPCLQuantityTitleRKITPMRDLIBT orRKITPMRDLIHW V Pure Sine Wave Inverter or W V Pure Sine Wave Inverter ChargerA ANL Fuse Set w FuseBattery Inverter CablesRKITBCGDQuantityTitleW V Rigid Solar PanelREGO A MPPT Builtin BluetoothSolar Panel Mounting Z Bracket Set of Solar Y Branch Connectors MMFFFM PairSolar Panel Extension CableRenogy FT AWG Anderson Adapter CableHolder w FuseA ANL Fuse Set w FuseTerminals for in LugsRKITPMGDLIBTRKITPMGDLIHQuantityTitleRKITBCGDV Ah LiFePO Battery W Bulitin Bluetooth or V Ah SelfHeating LiFePO Battery W BT ModuleCopper Battery Interconnect CableRKITPMGDLIBTPRKITPMGDLIBTPCL RKITPMGDLIHPRKITPMGDLIHPCLQuantityTitleRKITPMRDLIBT orRKITPMRDLIHW V Pure Sine Wave Inverter or W V Pure Sine Wave Inverter ChargerA ANL Fuse Set w FuseBattery Inverter CablesRKITBCRDBQuantityTitleW V Flexible Solar PanelRover A MPPT W LCD BT ModuleSolar Y Branch Connectors MMFFFM PairSolar Panel to Charge Controller Adaptor KitBattery to Charge Controller Tray CablesHolder w FuseA ANL Fuse Set w FuseTerminals for in LugsBT Bluetooth Module New VersionRKITPMRDBLIBTRKITPMRDBLIHQuantityTitleRKITBCRDBV Ah LiFePO Battery W Bulitin Bluetooth or V Ah SelfHeating LiFePO Battery W BT ModuleCopper Battery Interconnect CableRKITPMRDBLIBTPRKITPMRDBLIBTPCL RKITPMRDBLIHPRKITPMRDBLIHPCLQuantityTitleRKITPMRDBLIBT orRKITPMRDBLIHW V Pure Sine Wave Inverter or W V Pure Sine Wave Inverter ChargerA ANL Fuse Set w FuseBattery Inverter CablesRKITBCGDBQuantityTitleW V Flexible Solar PanelREGO A MPPT Builtin BluetoothSolar Y Branch Connectors MMFFFM PairSolar Panel Extension CableRenogy FT AWG Anderson Adapter CableHolder w FuseA ANL Fuse Set w FuseTerminals for in LugsRKITPMGDBLIBTRKITPMGDBLIHQuantityTitleRKITBCGDBV Ah LiFePO Battery W Bulitin Bluetooth or V Ah SelfHeating LiFePO Battery W BT ModuleCopper Battery Interconnect CableRKITPMGDBLIBTPRKITPMGDBLIBTPCL RKITPMGDBLIHPRKITPMRDBLIHPCLQuantityTitleRKITPMGDBLIBT orRKITPMGDBLIHW V Pure Sine Wave Inverter or W V Pure Sine Wave Inverter ChargerA ANL Fuse Set w FuseBattery Inverter CablesW V Rigid Solar Panel xW V Flexible Solar Panel xRover A MPPT W LCD BT Module xREGO A MPPT Builtin Bluetooth xV Ah LiFePO Battery W Bulitin Bluetooth xV Ah SelfHeating LiFePO Battery W BT Module xW V Pure Sine Wave Inverter xW V Pure Sine Wave Inverter Charger x

Max Power at STC:
200W

Open Circuit Voltage:
23V

Short Circuit Current:
11.05A

Optimum Operating Voltage:
19.2 V

Optimum Operating Current:
10.42 A

Operating Temperature:
-40°F~194°F / -40℃~90℃

Maximum System Voltage:
600 VDC UL

Maximum Series Fuse Rating:
20A

Dimensions:
58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm

Weight:
26.46 lb (12 kg)

Maximum Power at STC:
200W

Open-Circuit Voltage (Voc):
23.9V

Short Circuit Current:
10.74A

Optimum Operating Current (Imp):
10.02A

Maximum System Voltage:
600V DC

Maximum Series Fuse Rating:
15A

Operating Temperature:
-40°F to 176°F (-40ºC to +80ºC)

Dimensions:
1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)

Weight:
4.9 kg / 10.8 lbs

opc:


Nominal Voltage:
12V/24V/36V/48V Auto Recognition (for non-lithium batteries)

Rated Charge Current:
60A

Rated Load Current:
20A

Max. PV Input Power:
800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Max. PV Input Voltage:
150 VDC (25°C), 140VDC (-25°C)

Self-Consumption:
0.7W-1.2W

Operating Temperature:
-31 °F to 113 °F (-35 °C to 45 °C )

Dimensions:
285 x 205 x 102mm (11.22 x 8.07 x 4.00in)

Weight:
7.9lbs

opc:


Nominal System Voltage:
12 V

Rated Charge Current:
60A

Max. PV Input Power:
800W

MPPT Voltage Range:
15 – 100 VDC /12V

Solar Input Voltage Range (VOC):
100 V

Max Input Current (short-circuit, Isc):
50A

Power Limiting Protection:
Up to 800W/12V

Operating Temperature Range:
-20 ℃ – 60℃

Dimensions:
9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm

Weight:
5.07 lbs/ 2.30kg

Battery Type:
Lithium Iron Phosphate

Rated Capacity:
100 Ah

Nominal Voltage:
12.8 V

Voltage Range:
10~14.8 V

Cycle Life(0.5C,25℃):
80%DOD 2000 Cycles

Connection Method:
Parallel(Up to 8)

Protection Rate:
IP65

Charge Voltage:
14.4V

Maximum Continuous Charging Current:
50 A

Maximum Continuous Discharging Current:
100 A

Standard Operation Temperature:
25℃±5℃

Charge Temperature:
32~131°F/ 0~55°C

Discharge Temperature:
-4~140°F/ -20~60°C

Communication Port:
Modbus

Built-in Bluetooth:
Yes

Dimensions:
12.99 x6.77 x 8.43 inch / 330 x 172 x 214mm

Weight:
28.7 lbs. / 13.0 kg

opc:


Battery Type:
Lithium Iron Phosphate

Rated Capacity:
100AH

Nominal Voltage:
12.8 V

Cycle Life(0.2C,25℃):
80%DOD 4000 Cycles

Connection Method:
Parallel

Protection Rate:
IP54

Charge Voltage:
14.4V

Maximum Continuous Charging Current:
50 A

Maximum Continuous Discharging Current:
100 A

Automatically Self-heating Function:
Temperature < 41℉（5℃）

Standard Operation Temperature:
25℃±5℃

Storage Temperature:
-13~149℉ / -25~65℃

Communication Port:
RJ45 (RS485 Protocol)

Built-in Bluetooth:
No

Dimensions:
11.4 x 6.8 x 7.4 inch / 289 x 172 x 187.5 mm

Weight:
26 lbs. / 11.8 kg

Continuous Output Power:
3000W

Peak Power Rating:
6000W

Output Voltage:
120V

Output Frequency:
60 Hz ± 0.1%

AC Output Sockets:
3

AC Terminal Block:
1

USB Power Port:
5V/2.1A

Power Output Control:
AC On/Off Switch, and Remote Control

Output Waveform:
Pure Sine Wave

Nominal Efficiency:
> 90%

Operating Temperature Range:
-4°F – 104°F

Cooling Fan:
Thermally controlled

Dimensions:
18.9 x 9.0 x 4.0 in

Weight:
12.5 lb

Continuous Power:
3000W

AC Output Voltage Range:
100~120VAC configurable, 5V interval

DC Input Voltage Range:
10~16 VDC

Nominal Efficiency:
> 90% Peak

Output Waveform:
Pure Sine Wave

Output Frequency :
50/60 Hz

Input Voltage Range:
90-138 VAC

Input Wave Form:
Sine Wave (Utility or Generator)

Operating Temperature:
0 ~ 40°C / 32 ~ 104°F

Storage Temperature:
-30 ~ 70°C / -22 ~ 158°F

Battery Types:
GEL, AGM, SLA, FLD, CAL, LI, USER

Dimensions:
20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm

Weight:
63.5 lbs / 28.8 Kg

opc:


Panels:
25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty
