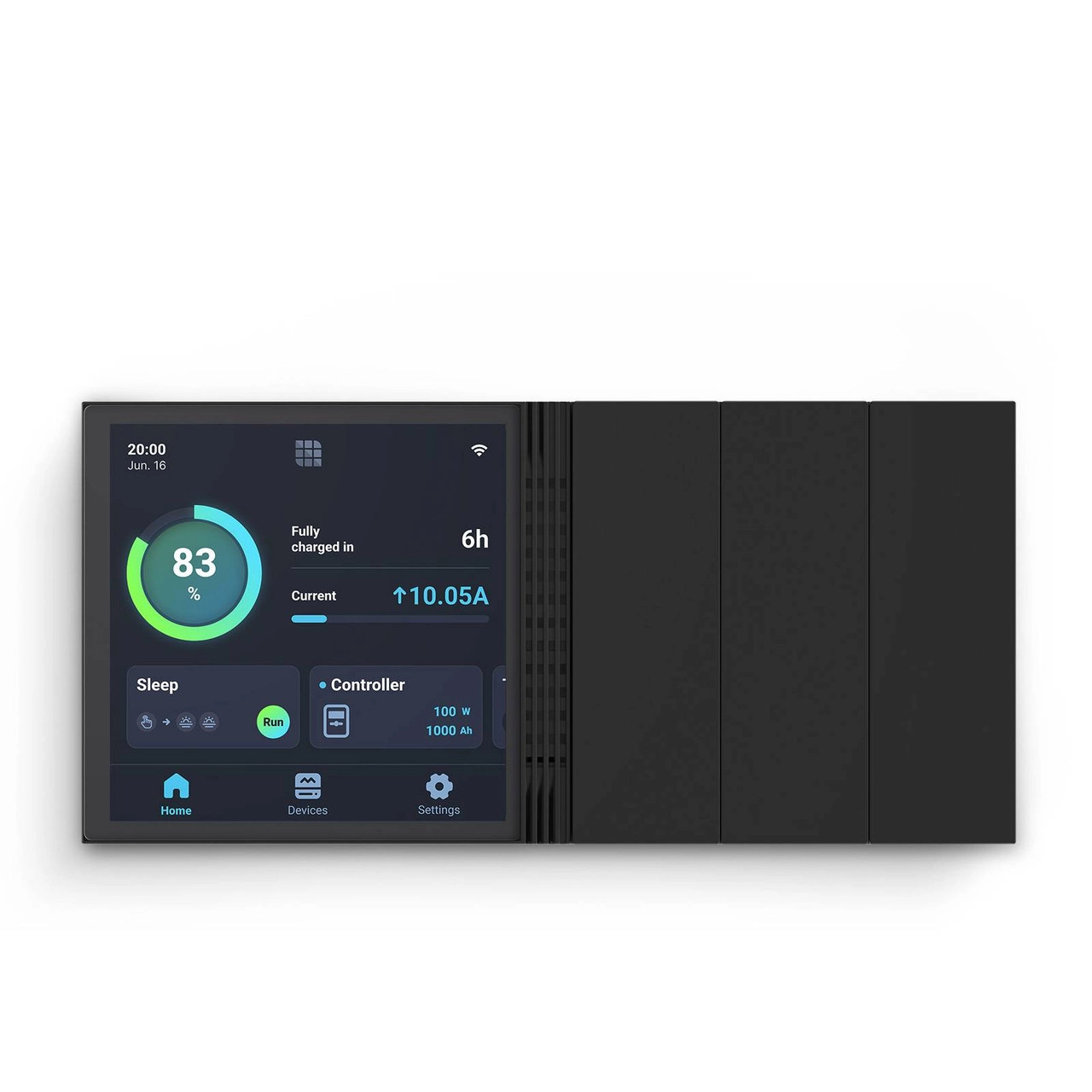

RENOGY ONE M1

Package IncludesRenogy ONE x V Power Cablem x M Screws x M Mounting Screws x Quick Guide x

Model:
RMS-LP4-G2

Load:
≤30V DC, 5A Max

Wireless Communication:
Wi-Fi (IEEE 802.11b/g/n 2.4 GHz); Bluetooth 2.1/4.2 and Bluetooth LE; Zigbee (IEEE 802.15.4)

Power Consumption:
< 2.5W (standby)

Touch Screen:
4 inches (480 x 480p) White backlight with adjustable brightness

Installation:
Flush mounting

Casing Material:
PC+ABS V0

Operating Temperature:
-20℃ to 50℃ (-4℉ to 122℉)

Operating Humidity:
0% to 95% RH

Operating Altitude:
Less than 2000 m above sea level

Power Supply:
Rated Power 3.5W 1.Power Port: 8V DC-16V DC 2.Type-C Port: 5V DC

Connection:
Zigbee (IEEE 802.15.4)

Ports:
1.USB Type-C (5V DC) 2.RJ45 (CAN & RS485) 3. 2-pin 2.54 mm pluggable terminal block (12V DC)

Protocols:
RV-C/Modbus/Zigbee 3.0

Color:
Black

Dimension:
181.8 x 86.8 x 42.2 mm (7.16 x 3.42 x 1.66 in)

Weight:
0.63 lbs/286 g

Applicable Place:
Indoor

CE, FCC:
YES

opc:


Warranty information:
2-year Prorated Warranty
