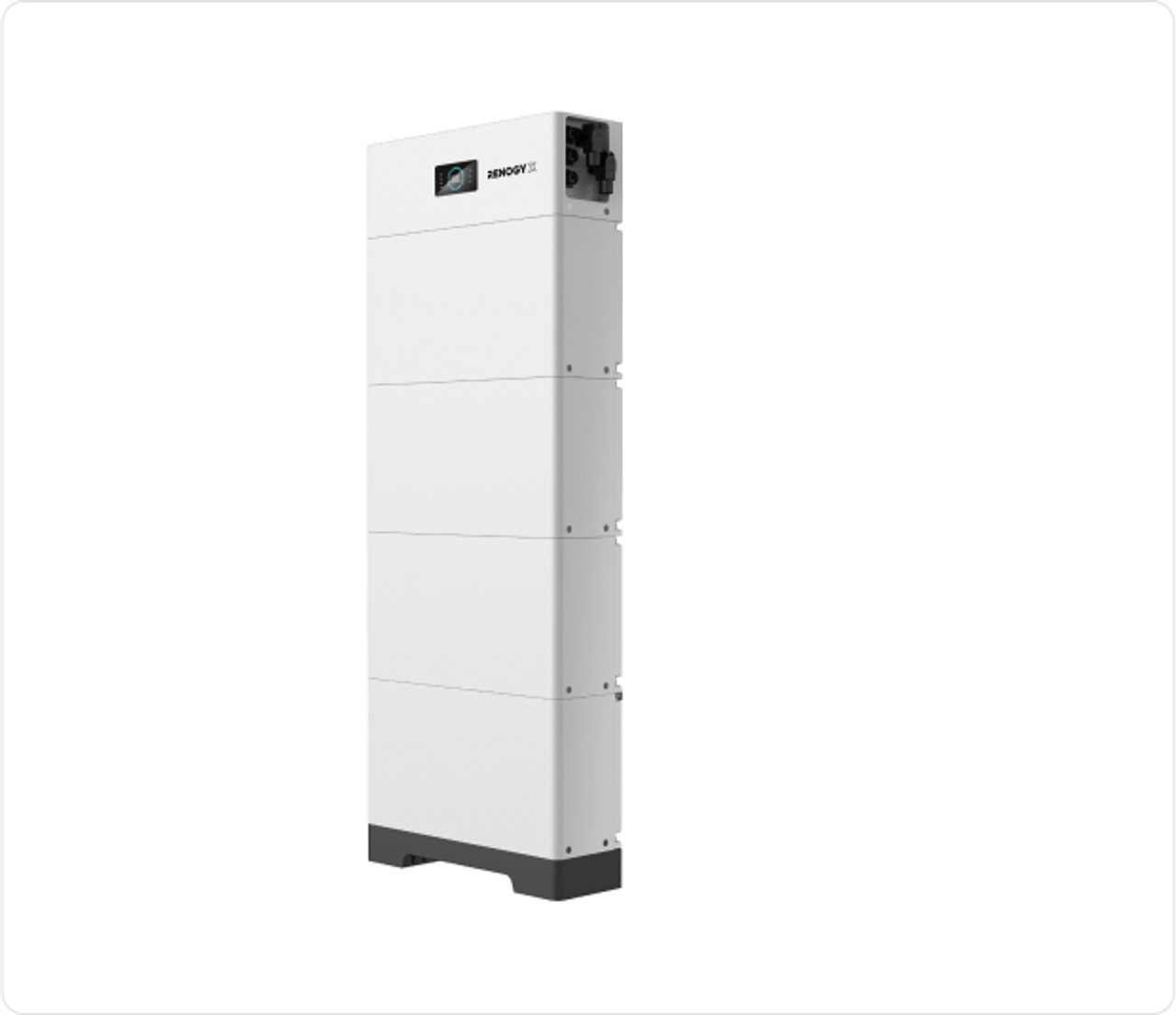

Renogy X Energy Storage System

Package IncludesRenogy X BatteryRenogy X Battery x

Battery Qty:
4

Rated Energy (kWh):
20

Rated Capacity (Ah):
400

Max. Discharge Current (A):
200

Dimensions (W x H x D) (in/mm):
22.5 x 60.7 x 7.4 (573 x 1542 x 189)

Weight (lb/kg):
443 (215)

Nominal Voltage (V):
51.2

Operating Voltage Range (V):
44.8 – 55.2

Max. Charging Current (25°C):
50A

External Communication:
CAN/RS485/WiFi

Communication Display:
Charge overvoltage, discharge undervoltage, overcurrent, overtemperature

Operating Temperature (F/C):
Charging: 14°to 122° (-10° to 50° / Discharging -4° to 122° (-20° to 50°)

Operating Humidity:
10%-95%

Altitude:
<4000m

Cell Type:
LFP

Cell Configuration:
1P16S

Cycle Life:
>6000 Cycles

Certifications:
UL1973, UL9540

Protection Rating:
IP55

Warranty:
10 Years
