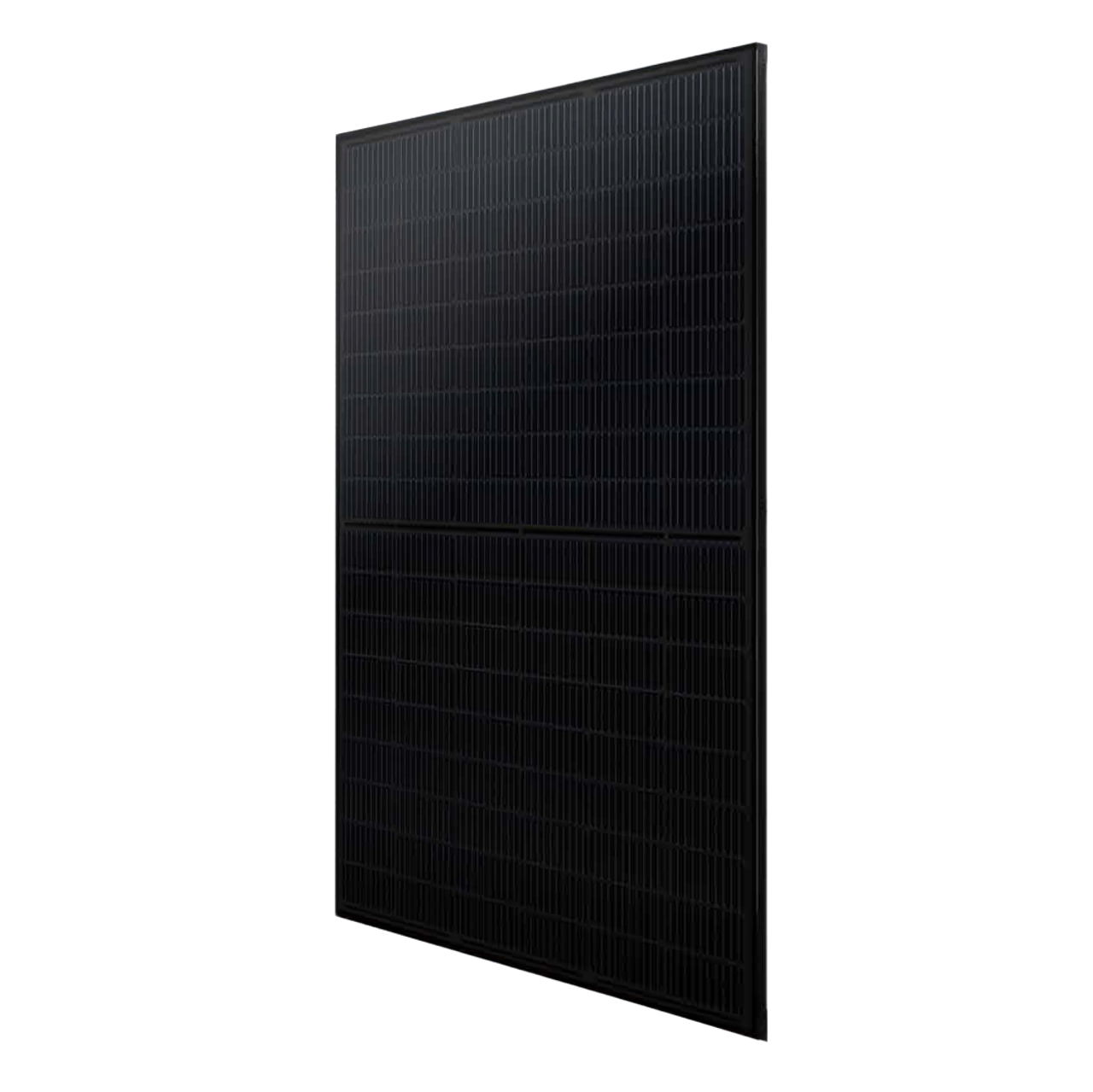

Renogy X Solar Panels

Package IncludesRenogy X Solar PanelRenogy X Solar Panel x

Max. Power at STC:
405W

Optimum Operating Voltage:
31.09V

Optimum Operating Current:
13.02A

Open Circuit Voltage (Voc):
37.31V

Short Circuit Current (Isc):
13.87A

Module Efficiency:
20.5%

Max System Voltage:
1500 VDC

Max Series Fuse Rating:
25A

Solar Cell Type:
PERC Monocrystalline (7.2 x 3.6 in)

Number of Cells:
108 (6 x 18), 60 cells in series

Dimensions:
67.8 x 44.7 x 1.4in

Weight:
47.4 lbs

Front Glass:
Tempered Glass 0.13”

Frame:
Anodized Aluminum Alloy

Connector:
Solar Connector

Fire Rating:
Class C

Operating Temp. Range:
-40F to 185F

Temp Coefficient of Pmax:
-0.35 %/C

Temp Coefficient of Voc:
-0.26 %/C

Temp Coefficient of Isc:
0.048 %/C

Protection Degree:
-40F to 185F

Diode:
-0.35 %/C

Number of Diodes:
-0.26 %/C

Output Cables:
0.048 %/C

Rated Current:
35A

Maximum Voltage:
1500 VDC

Maximum AWG Size:
10 AWG

Operating Tempatures:
-40°F to 185°F

IP Rating:
IP65 / IP 68 (1m, 1h)

opc:


EN IEC61730:
Yes

EN IEC61215:
Yes

ISO 9001: QMS:
Yes

ETL, UL61730:
Yes
