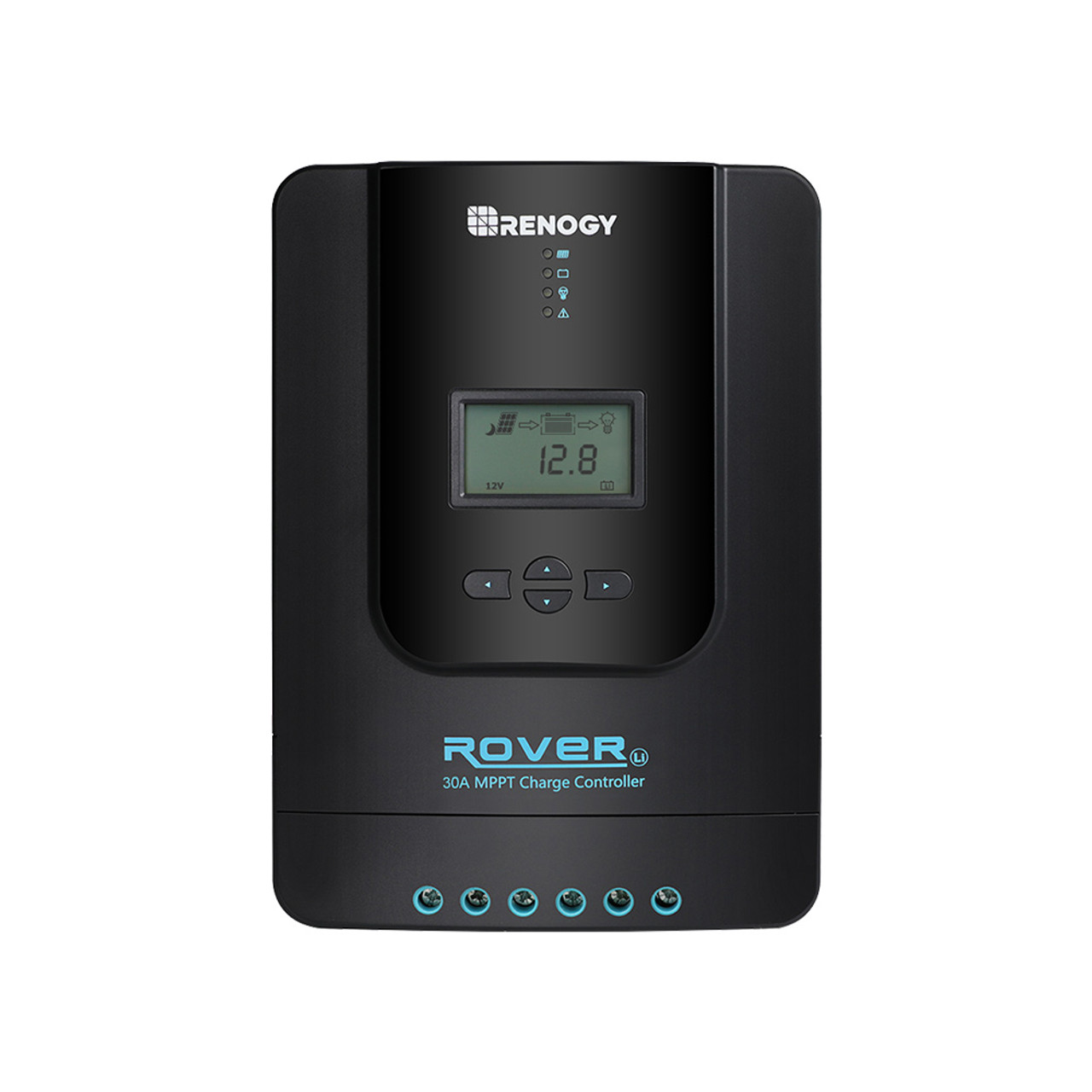

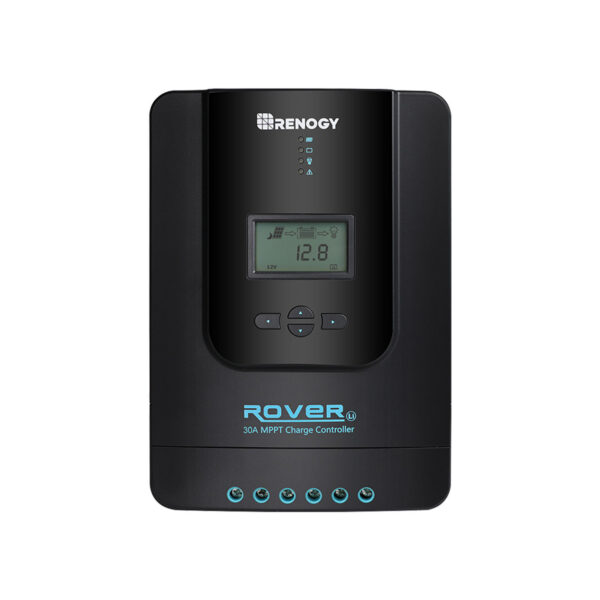

Rover Li 30 Amp MPPT Solar Charge Controller
$129.99
【Monitoring with Renogy ONE Core】 Add Renogy ONE Core to achieve smart energy monitoring with intuitive visuals and real-time data. It is an upgraded streamlined energy with our 3-in-1 smart panel.
【Innovative MPPT Design】 Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.
【12V/24V Automatically Detect】 Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes.
【Full System Protection】 Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.
【4-Stage Safely Charging】 Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithiuim batteries as well as Lithium Reactivation.
【Diverse Load Control】 Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller.
Description
Package IncludesRover Li Amp MPPT Charge Controller xRemote Temperature Sensor xMounting Brackets XOptions BT Bluetooth Module x
Nominal System Voltage:
12/24V (Auto-Detect for Non-Lithium types)
Rated Charge Current:
30A
Max. PV Input Voltage:
95 VDC
Max. PV Input Power:
12V/400W, 24V/800W
Power Consumption:
＜100mA/12V; ＜58mA/24V
Max Battery Voltage:
32V
Ground Type:
Negative
Electrical Protection:
Overcharging, over-discharging, overload, and short circuit.Capable of charging over-discharged lithium batteries.
Protection Level:
IP32
Operating Temperature Range:
-35°C to 45°C; -31°F to 113°F
Storage Temperature Range:
-35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity:
≤ 90%, No Condensation
Temperature Compensation:
-3mV/°C/2V
opc:
Dimensions:
238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight:
4.4 lbs / 2.0 kg
Max. Terminals Size:
8 AWG 10mm2
opc:
CE:
YES
FCC Class B Part 15 Compliant:
YES
Material and workmanship warranty:
2 Year
opc:
Compatible PWM Charge Controller:
RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI
Compatible MPPT Charge Controller:
RNG-CTRL-RVR20/RNG-CTRL-RVR30/ RNG-CTRL-RVR40/RNG-CTRL-RVR60S/ RNG-CTRL-RVR100
Compatible App:
Renogy DC Home App available in both the App Store and Google Play
opc:
Communication Range:
≤82ft (25m)
Cable Length:
16.4 ft (5.00m )
Dimensions:
9.38 x 6.78 x 3.05 in (238 x 172 x 77 mm)
Weight:
4.58oz (130g )
Operation Temperature:
-4°F to 185°F (-20℃~85℃)
opc:
Communication Protocol:
RS232
Port Type:
RJ12
Input Voltage:
5V
Protection Grade:
IP54
Standby Power Consumption:
0.04W
Operating Power Consumption:
0.05W
Serial Baud Rate:
Fixed Baud Rate 9600bps
opc:
FCC Class B Part 15 Compliant:
YES
opc:
Material and workmanship warranty:
2 Year
opc:
