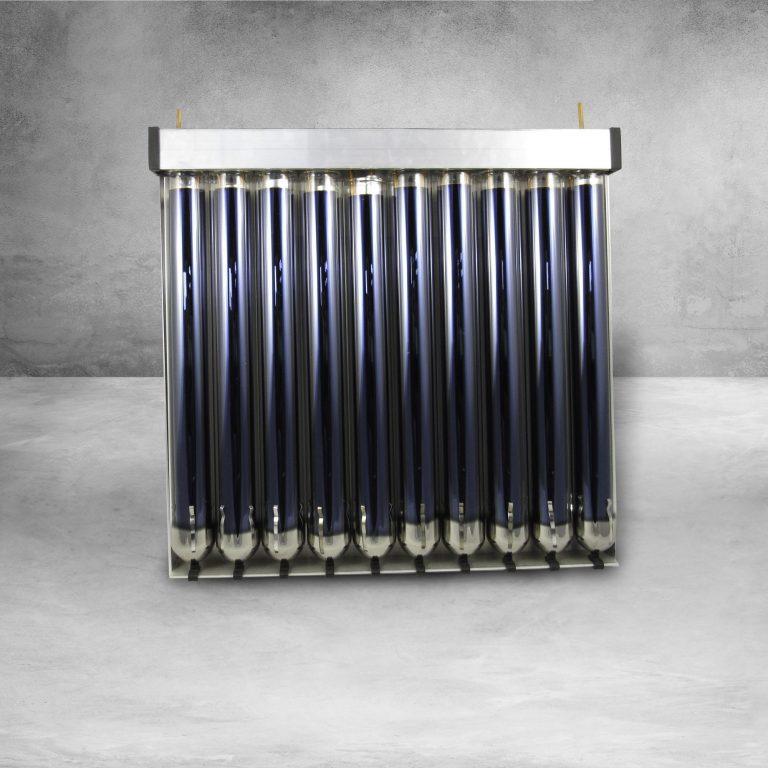

Solar Hot Water Heater Panel

Standard 1/4″ copper pipe through-flow in/out ports for simple connections. Engineered to easily integrate into DIY or standard plumbing systems, the copper manifold pipe is comprised of 10 continuous “u-pipe” bends, maximizing your hookup options while minimizing size, weight, and cost

On Solar Tube Performance

10 Solar Tube array only.

Heats 5 gallons of water from 68°F (room temp) to 122°F (above hot tub temp) in four hours if recirculated by our Solar Water Heater Pump.

Jumps temp of any input water circulating through by 37°F at flow rate of 5 gallons per hour (pump required).

Heats water at a rate of 165 watts. 12v Solar Water Pump (one unit). Max water flow: 20liters/min. Rated voltage: 12 V DC, Rated Current: 2.8A

Unit measures 23″ wide, 22″ tall, 3″ thick, weighs 19 lbs.

1/2-inch CPVC thread adapters for universal connection options included (two units).

Do not exceed 100 psi (Ok for most city supply pressure). Closed systems must have relief valve.

HIGHLY EFFICIENT SOLAR THERMAL COLLECTOR. Sunlight is extremely powerful. Steam & burn danger without proper handling. Remember to never connect to a closed system without pressure relief. Do not touch internal components while heated.
