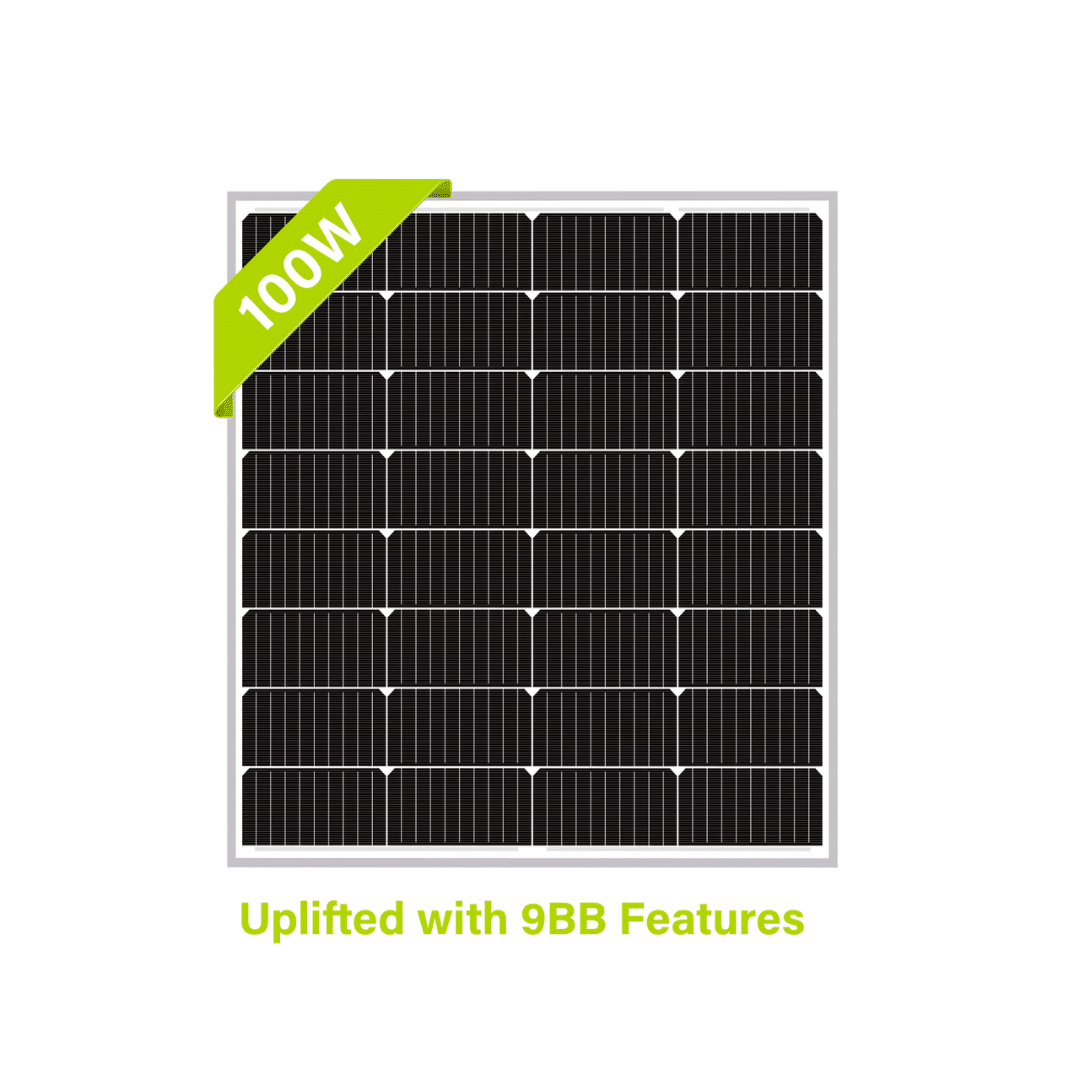

100W 12V Compact Monocrystalline Solar Panel

$104.99

In stock

Newpowa’s 100W 12V Compact Monocrystalline High-efficiency Solar Panel is commonly paired with RV, marine, gate opener, overlanding, van / airstream conversions, and various off-grid applications. Under ideal conditions, 9 busbar PV module will outperform the dated 5 and 6 busbar technology. The void space reduction between the 9BB solar cells is designed to enhance the overall efficiency of the PV module by lowering current lengths and mitigating against loss of output.

SKU: BN-NPA100M-12I Category:

$104.99

Product Quantity Discount Price per Unit
2 - 4 5% $99.74
5+ 10% $94.49

Description

Features

  • Ultra High-Performance cells encapsulated in EVA (ethylene-vinyl-acetate)
  • Maximum Efficiency: 21.3%
  • Nominal 12V DC for standard output
  • Heavy-duty anodized frame with pre-drilled holes for mounting
  • Rugged design to withstand high winds (2400Pa), hail & snow load (5400Pa)
  • High-transparent, low iron tempered glass
  • Durable TPT backsheet – dissipates heat to optimize performance and enhance longevity
  • Built-in bypass diodes within junction box that minimize power drops caused by shading
  • Pre-attached 3ft wire with connectors (M/F)
  • Product dimensions: 28.54 x 27.76 x 1.18 in (725 x 705 x 30 mm)

Tech & Specs

  • Product Code: NPA100M-12I
  • Maximum power (Pmax): 100W
  • Voltage at Pmax (Vmp): 19.06V
  • Current at Pmax (Imp): 5.26A
  • Open-circuit voltage (Voc): 21.82V
  • Short-circuit current (Isc): 5.55A
  • Temperature coefficient of Voc: -(80±10)mV/°C
  • Temperature coefficient of Isc: (0.065±0.015)%/ °C
  • Temperature coefficient of power: -(0.5±0.05)%/ °C
  • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s): 47±2°C
  • Operating temperature: -40°C to 85°C
  • Maximum system voltage: 1000V DC
  • Power tolerance: ± 3%
  • Maximum Series Fuse Rating: 15A
